TEV-3
Description

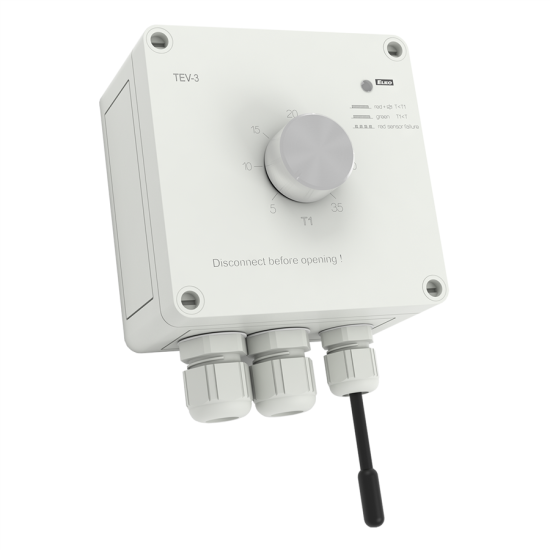

TEV-3 | Thermostat
- Single thermostat with the possibility of temperature management in adjustable range (it is possible to modify this range or make a special one on request).
- Used to regulate heating (or cooling) in demanding environments (outside, humidity, dustiness, etc.).
- The thermostat is placed in a water-proof box with IP65 protection, which enables installation outside, with the in-built sensor.
- TEV-2: control and indication elements are placed under a transparent cover.
- TEV-3: control and indication elements are placed directly on the cover (for easy orientation and frequent change of temperature).
- Thermostat status is indicated by LED (2 colors).
- The function of monitoring sensor disconnection and short-circuit.
- Output 1x switch / SPDT contact 16A (AC-1).
More information
- Function: one-level thermostat
- Supply terminals: L - N
- Voltage range: 230V AC / 50 - 60Hz
- Tolerance of voltage range: ± 15%
- Measuring terminals: T - T
- Temperature ranges: +5.. +35°C
- Number of contacts: 1x switch (AgNi)
- Operation temperature: -30 to 50°C
- Operation position: any
- Protection degree: IP65
- Weight: 277g
Documents
Parameters
Power voltage | 230 V AC |
---|---|
Design | Box IP65 |
Sensor | External |
Temperature range | +5 ... 35 °C |
