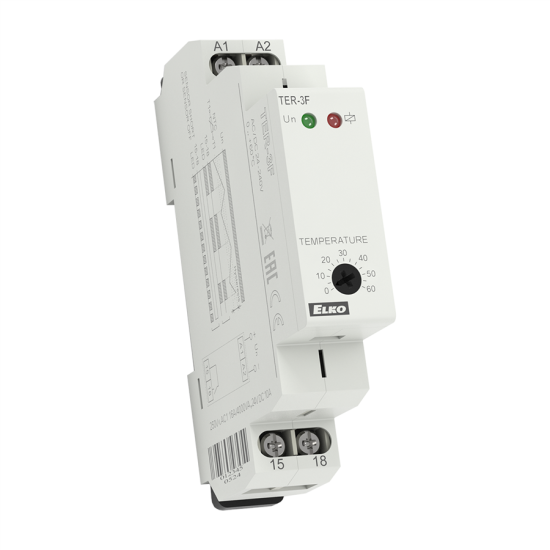

TER-3F | Thermostats

• Single thermostat for temperature monitoring and regulation in range 0 to +60°C (32°F to 140°F).
• It can be used for temperature monitoring e.g. in switchboards, heating systems, liquids, radiators, motors, devices, open spaces, etc.
• Fixed hysteresis at 1°C / (1.8°F).
• TER-3E: choice of external temperature sensors with double insulation in standard lengths 3 (9.8´), 6 (19.7´) and 12m (39.4´).
• TER-3F: the sensor is a part of the device, serves for monitoring temperature in a switchboard.
• Supply voltage AC /DC 24 - 240V.
• Output contact 1x NO- SPST 16A / 250V AC1.
• Output status is indicated by a red LED.
• 1-MODULE, DIN rail mounting

More information

• Function: single level
• Supply terminals: A1-A2
• Voltage range: AC /DC 24 - 240V (AC 50 - 60Hz)
• Burden: 2VA
• Operating range: - 15%; +10%
• Temperature ranges: 0 .. +60°C
• Sensor: in-built
• Number of contacts: 1x switch (AgSnO₂)
• Operating temperature: -20°C to 55°C
• Operating position: any
• Mounting: DIN rail EN 60715
• Protection degree: IP40 from front panel / IP10 terminals
• Dimensions:90 x 17.6 x 64mm
• Weight: 74g
