Description

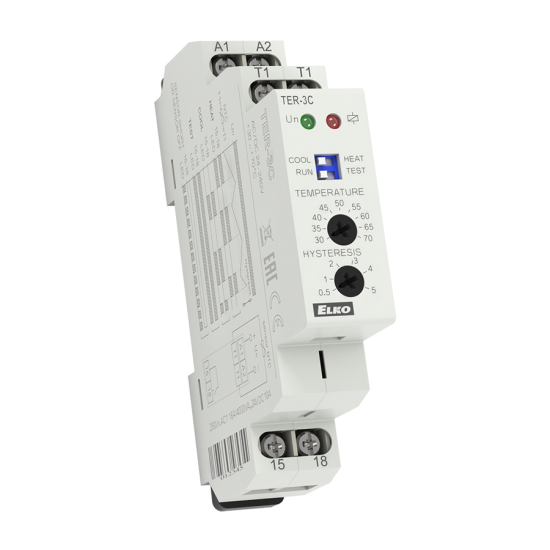

TER-3C | Thermostat

  • Single thermostat for temperature monitoring and regulation in the range -30°C to +70°C (-22°F to 158°F) in six ranges.
  • It can be used for monitoring temperature e.g. in switchboards, heating systems, cooling systems, liquids, radiators, motors, devices, open spaces, etc.
  • The function of short-circuit or sensor disconnection monitoring.
  • Possibility to set function “heating”/”cooling” (setting is done by DIP switch).
  • Adjustable hysteresis (sensitivity), switching by a potentiometer in range 0.5 to 5°C / 0.9 to 9°F
  • Choice of external temperature sensors with double insulation in standard lengths 3, 6 and 12m (9.8´,19.7´ and 39.4´).
  • It is possible to place the sensor directly on the terminal block - for temperature monitoring in a switchboard or in its surroundings.
  • Multivoltage supply AC/DC 24 -240V, not galvanically separated.
  • Output contact 1x NO - SPST 16A /250V AC1.
  • Red LED indicates the status of output, a green LED indicates the energization of the device.
  • 1-MODULE, DIN rail mounting

More information

  • Function: single level
  • Supply terminals: A1-A2
  • Voltage range: AC/DC 24 - 240V (galvanically unseparated) (AC 50-60Hz)
  • Burden: 2VA
  • Operating range: - 15%; + 10%
  • Temperature range: 30°C to 70°C
  • Number of contacts: 1x switch (AgSnO2)
  • Operating position: any
  • Mounting: DIN rail EN 60715
  • Protection degree: IP40 from front panel / IP10 terminals
  • Dimensions: 90 x 17.6 x 64mm
  • Weight: 73g
