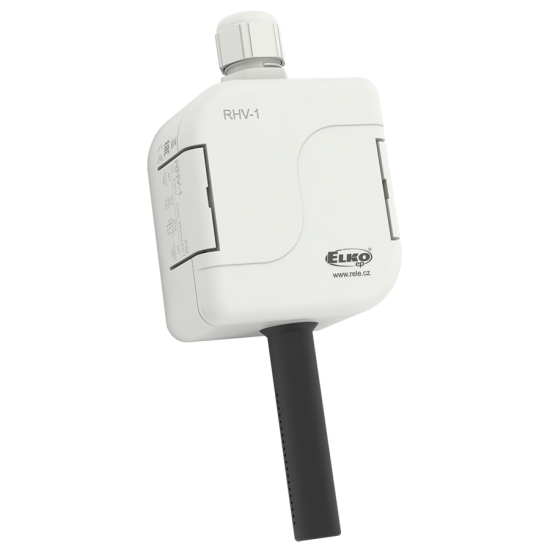

RHV-1
Description
RHV-1 | Hygrostat
- simple humidistat for monitoring and regulation of relative humidity in outdoor areas and demanding environments (humid and polluted, aggressive and defective, industrial plants, dishwashers, greenhouses, cellars, cooling boxes…)
- The external version in IP65, box for mounting on the wall.
- The built-in hygro-sensor is integrated into the device.
- Two functions adjustable by jumper: moistening and drying.
- 3 adjustable relative humidity ranges, fine adjustment of relative humidity within the range with a potentiometer
- 3 adjustable (by jumper) levels of hysteresis.
- Supply voltage 230V AC.
- potential-free output contact 12A / AC1 switching
More information
- Supply terminals: L - N
- Voltage range: AC 230V / 50 - 60Hz
- Input voltage range: - 15% .. +10%
- Output contact: 1 x switch (AgSnO2)
- Operation temperature: -30°C to 60°C
- Working position: always with the sensor down
- Protection degree: IP65
- Dimensions: 153 x 62 x 34mm
- Weight: 148g
