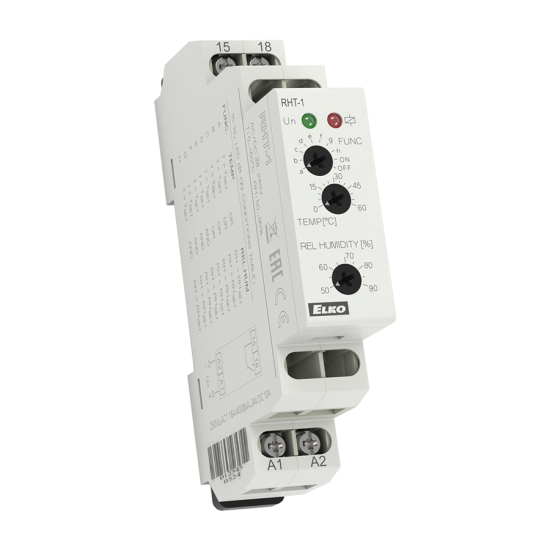

Hygro-thermostat for temperature monitoring and regulation in range 0°C to 60°C (32°F to 140°F) and relative humidity monitoring and regulation in range 50...90%.
Possibility of the setting of up to 8 conditions for contact switching and function permanently ON/OFF.
The sensor is a part of the device - designated for measuring in switchboards.
The function of sensor control (damage, disturbances...).
Fixed setting of temperature hysteresis at 2.5°C (4.5°F) and humidity at 4%.
The output state is indicated by a red LED.
Supply voltage AC/DC 24-240V.
Output contact 1x NO-SPST 16A/250V AC1.
1-MODULE, DIN rail mounting.
More information
Function: hygro-thermostat
Supply terminals: A1 - A2
Voltage range: 24 - 240V AC/DC (AC 50 - 60Hz)
Setting accuracy (mechanical): 5%
Number of contacts: 1x switch (AgSnO2)
Operational temperature: -20°C to 60°C
Mounting: DIN rail EN 60715
Protection degree: IP40 from the front panel, IP10 on terminals
