COST-EFFICIENT BUNDLE OF ASYMMETRIC CYCLER AND 2 PCS EXTERNAL POTENTIOMETER.

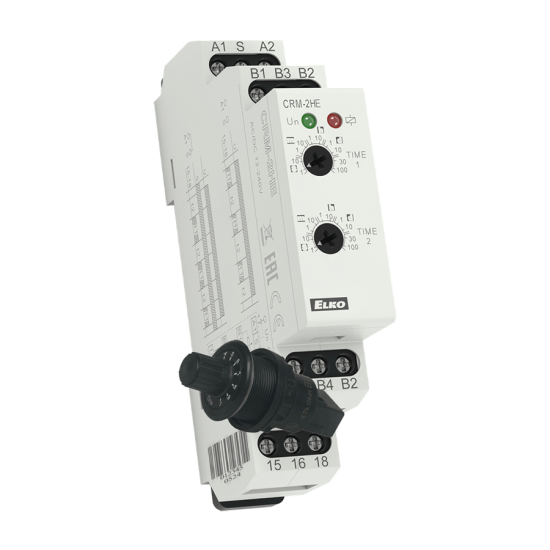

CRM-2HE | Time relay with an external potentiometer
Control by external control unit - potentiometer (can be placed/ mounted for example on switchboard doors or in the panel).
2-time functions:
cycler beginning with a pulse
cycler beginning with a gap
- the function selected via an external wired link with control input S-A1.
Possibility to connect external potentiometer - max. distance 10m (32.8 ft.) from relay CRM-91HE, CRM-2HE
More information
Number of functions: 2
Supply terminals: A1 - A2
Power indication: green LED
Operating position: any
Mounting: DIN rail EN 60715
Protection degree: IP40 from front panel / IP20 terminals
Dimensions: 90 x 17.6 x 64mm
Weight: 78g
Possibility to connect external potentiometer - max. distance 10m (32.8 ft.) from relay CRM-2HE.
Time relay with the possibility of time control by an external control device- potentiometer, which can be placed in the door of the switchboard, panel.
