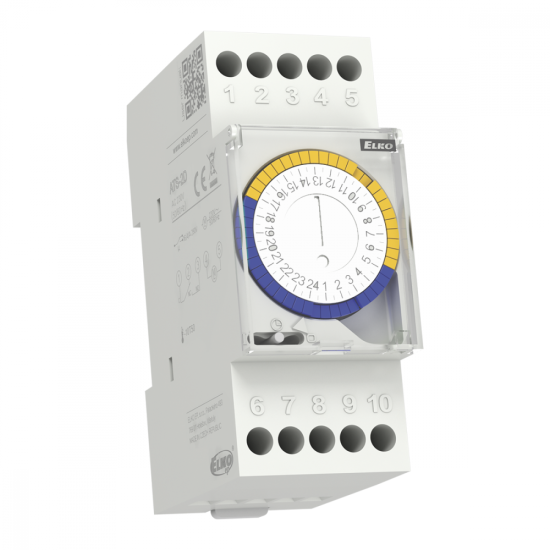

ATS-2D Analog time switches with a daily program

• The mechanical time switch is a simple and inexpensive alternative to digital time switches for controlling heating, ventilation, cooling, lighting systems or pumps depending on real-time.
• Daily program.
• Selection of operating modes using a switch on the panel:
  • switches automatically according to the set program.
  • permanently closes
  • permanently opens
• Without power reserve after power off.
• Sealable transparent front panel cover.

Technical parameters

• Supply voltage: AC 230V (50 Hz)
• Power consumption (max.): 1W (1,5 VA)
• Program: daily
• Min. operating switching time: 30 min
• Contacts: 1x changeover 16 A (AgNi)
• Mounting: DIN rail EN 60715
• Protection degree: IP20
• Dimensions: 90 x 35 x 60 mm (3,5˝ x 1.4˝ x 2.4˝)
• Weight: 117 g (4,1 oz.)
