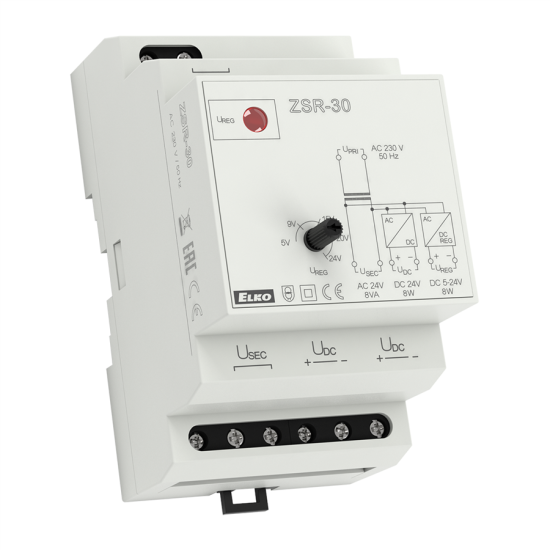

Home ZSR-30 Home ZSR-30 ZSR-30 Add to favorite products Add to compare list ZSR-30 Adjustable power supply 30W Power supply with adjustable / fixed output voltage up to a maximum load of 8W More 3D MODEL Manufacturer: ELKO EP Ord. code: 175 standard EAN: 8594030331750 On request Price excl. VAT £ 53,50 Your price: £ 64.20 incl. VAT pcs Add to cart Choose a variant Quantity Price excl. VAT 5-9 pcs £ 50.83 10-24 pcs £ 49.49 25-49 pcs £ 48.15 50-99 pcs £ 45.48 more than 99 pcs £ 42.80 Description ZSR-30 | Power Supply Supply of various devices and appliances by safe voltage with fully galvanic separation from the main. Input voltage: AC 230V. Output voltage: DC 5-24V stab., DC 24V unstable. and AC 24V. tab. AC 24V When there is full short-circuit, the output is disconnected, the output current is limited by an electronic fuse. 3-MODULE, DIN rail mounting. More information Voltage range: AC 230V / 50-60Hz Supply voltage tolerance: -15%; +10% Consumption without load (max): 6VA Power consumption under load (max): 10VA Output voltage: DC 5-24V stab. DC 24V unstable. AC 24V Fuse (in primary winding): T100 mA fuse Output voltage ripple: 300mV Efficiency: 75% Electronic fuse: against short circuit and current. overload Operating temperature: -20.. +40°C Protection degree: IP40 from front panel / IP20 terminals Dimensions: 90 x 52 x 65mm Weight: 390g Documents Datasheet_ZSR_ZNP.pdf EC_Declaration_of_conformity_ZSR-30.pdf Manual_multilanguage_ZSR_ZNP.pdf Manual_ZSR_ZNP.pdf Parameters Design 3-MODULES Type of output voltage AC, DC Input voltage 230 V AC Output voltage 5 - 24 V DC, 24 V AC Share Tweet Pin It
