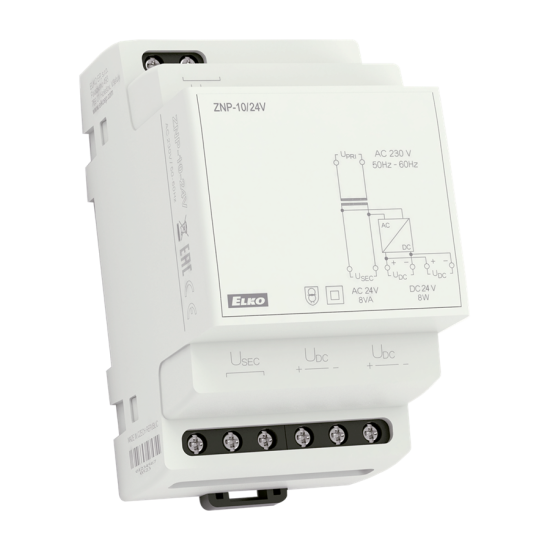

ZNP-10-24
Description
ZNP-10-24 | Unstabilized Power Supply
- AC and DC output voltage 24V, nonstabilized.
- Protection against short-circuit and overload by a safety fuse.
- Input voltage: AC 230V.
- 3-MODULE, DIN rail mounting
More information
- Voltage range: AC 230V / 50-60Hz
- Supply voltage tolerance: -15%; +10%
- Consumption without load (max): 6.5VA
- Power consumption under load (max): 11VA
- Output voltage: DC 12V nonstab; AC 24V
- No-load voltage on AC output: 32V
- No-load voltage on DC output: 44V
- Fuse (in primary winding): T100 mA fuse
- Output voltage ripple: max. 3V
- Operating temperature: -20.. +40°C
- Protection degree: IP40 from front panel / IP20 terminals
- Dimensions: 90 x 52 x 65mm
- Weight: 360g
Documents
Parameters
Design | 3-MODULES |
---|---|
Type of output voltage | AC, DC |
Input voltage | 230 V AC |
Output voltage | 24 V AC, 24 V DC |
