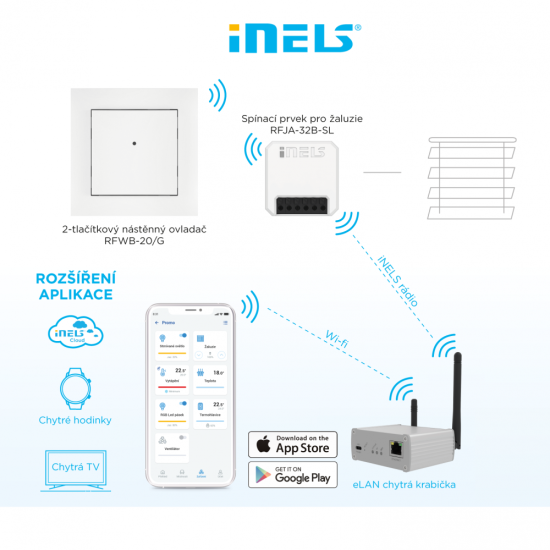

Combination of iNELS wall-mounted wireless controller and shutter switching device.

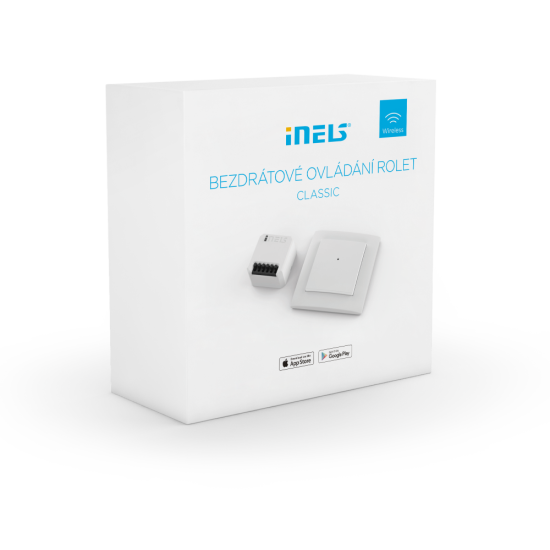

KIT CONTENTS:
RFWB-20/G | On-wall button controller (2 buttons)
The wireless controller is used to control switches and dimmers (lights, gate, garage door, blinds, etc.).
RFWB-20/G: two buttons enable the control of one or two units independently (depending on the type of switching element).
The fl at design with a level base makes it ideal for fast installation on any surface (fixation with adhesive or screws in the installation box).
RFJA-32B-SL | Switch unit for shutters
The switching unit for blinds has 2 output channels used to control garage doors, gates, blinds, awnings, etc…
It can be combined with system components iNELS RF Control2 with RFIO2 protocol.
The BOX design lets you mount it right in an installation box, a ceiling, or a motor drive cover.
Short presses of the controller enable tilting of lamellas, and a long press enables you to draw the blinds up or down to the end position.
Each of the units may be controlled by up to 25 channels (1 channel represents one assigned controller).
The programming button on the unit is also used for manual control of the output.
For components, it is possible to set the repeater function via the RFAF / USB service device.
Range up to 200 m (in open space), if the signal is insufficient between the controller and unit, use the signal repeater RFRP-20 or protocol component RFIO2 that support this feature.
Communication frequency with bidirectional protocol iNELS RF Control2 (RFIO2).
