Combination of iNELS wall-mounted wireless controller and switching unit for various uses. It can be used to remote control electrical appliances, lights, sockets, garage doors, etc..

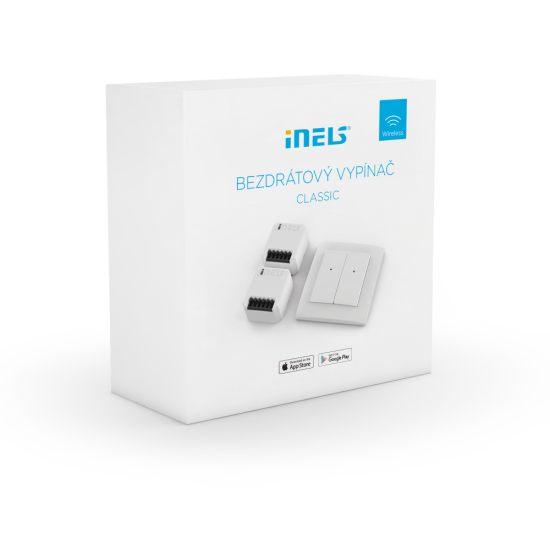

PACKAGE:

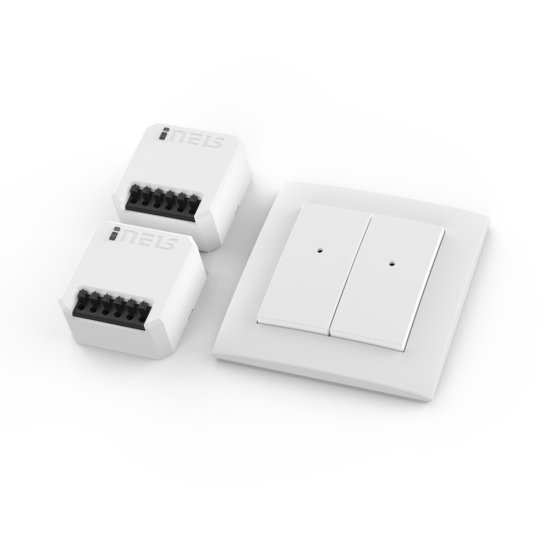

RFWB-40/G | Wireless wall controller
The wireless controller is used to control switches and dimmers (lights, gate, garage door, blinds, etc.).
RFWB-40/G: two buttons enable control from two up to four units independently (depending on the type of switching element).
The flat design with a level base makes it ideal for fast installation on any surface (fixation with adhesive or screws in the installation box).
RFSAI-11B-SL | Switching units with inputs for external buttons
The switching unit with 1 output channel is used to control appliances, lights, etc.
They can be combined with detectors, controllers, iNELS RF Control2, or system components.
The BOX design lets you mount it right in an installation box, a ceiling, or a controlled appliance cover.
The switched load up to 8 A (2.000 W).
Single-function design - switch on / off .
The output on the switching unit can be controlled by up to 25 channels (1 channel represents one button on the controller).
The programming button on the unit is also used for manual control of the output.
Memory status can be pre-set in the event of a power failure.
For components labeled as iNELS RF Control2 (RFIO2), it is possible to set the repeater function via the RFAF/ USB service device.
Communication frequency with bidirectional protocol iNELS RF Control2 (RFIO2).
