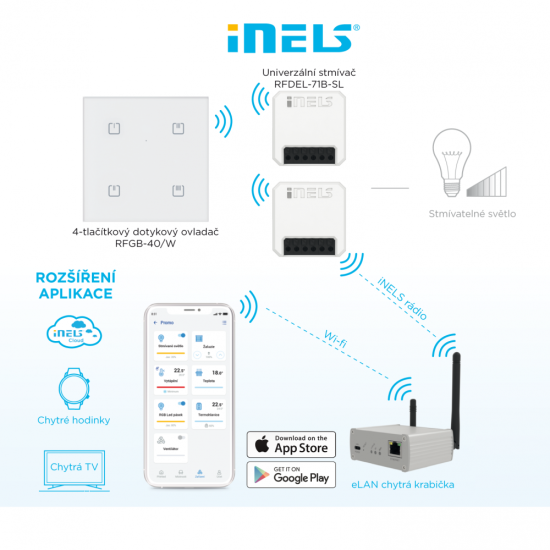

Combination of iNELS wall-mounted wireless controller and dimmer for regulation of all types of dimmable bulbs and light sources.

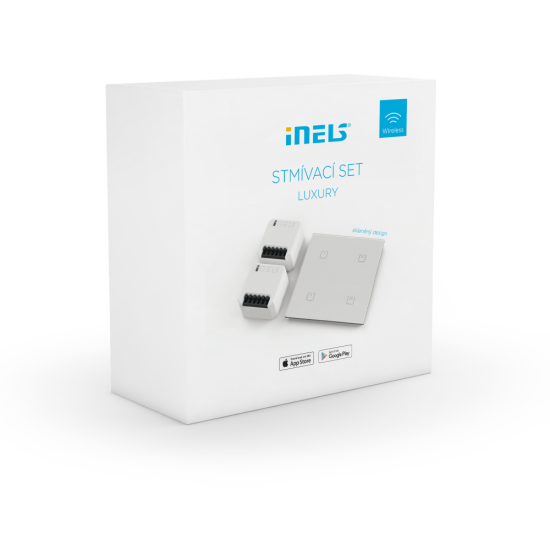

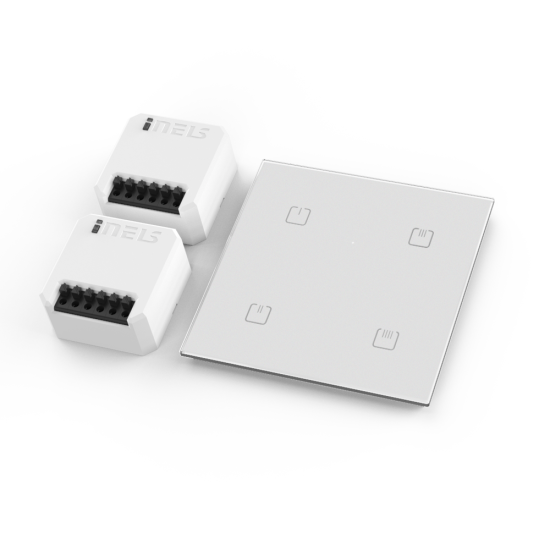

PACKAGE:

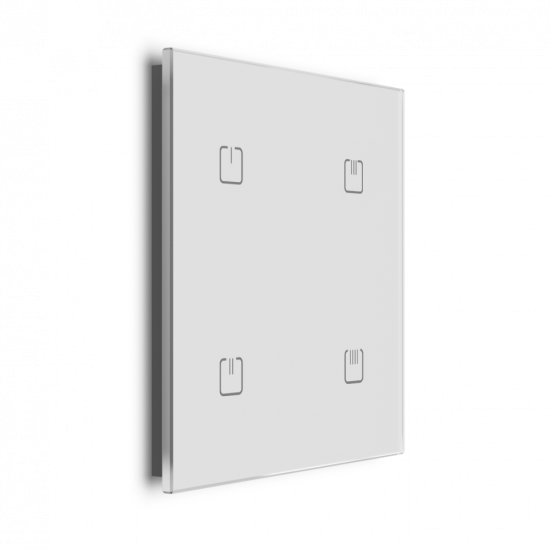

RFGB-40/W | Glass touch controller, 4 buttons
The wireless control - is used to control, lights, gates, garage doors, shutters, etc.
The thickness is only 8 mm.
4 capacitive buttons allow you to control 4 components.
Fast installation on any surface - the rear base allows screwing to the walls, gluing with double-sided tape or just laying on the table
RFDEL-71B-SL | Universal dimmer, 1-channel
The universal built-in dimmer is used to regulate light sources.
They can be combined with detectors, controllers, iNELS RF Control, or system components.
6 light functions - smooth increase or decrease with time setting 2s-30 min.
When switched off, the set level is stored in the memory, and when switched back on, it returns to the most recently set value.
The universal dimmer may be controlled by up to 25 channels (1 channel represents 1 button).
The connection of the existing button on the control input “S“ enables the combination of wireless control with classic (wired) control.
The programming button on the controller is also used for manual control of the output.
Memory status can be pre-set in the event of a power failure.
For components labeled as iNELS RF Control2 (RFIO2), it is possible to set the repeater function via the RFAF/USB service device.
Range up to 200 m (in open space), if the signal is insufficient between the controller and unit, use the signal repeater RFRP-20 or protocol component RFIO2 that supports this feature.
