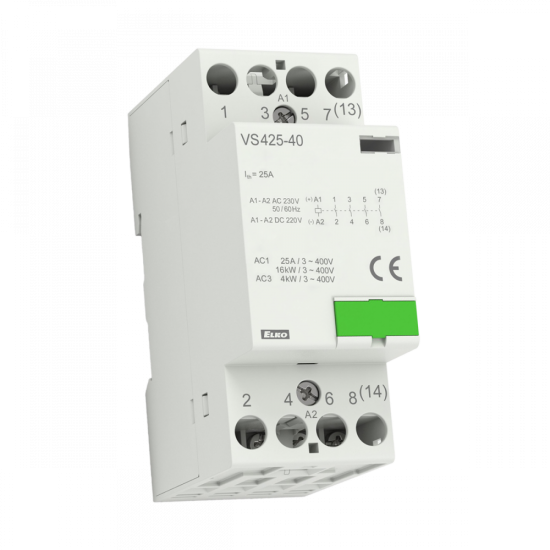

VS425

Installation contactor 4x25A

3D MODEL
Manufacturer: ELKO EP

Ord. code: VS425

Price excl. VAT £ 20,00
Your price: £ 20 excl. VAT
Specify product selection
Variant does not exist

Description

VS425 | Installation contactor

  • for switching of electric circuits, especially for resistive loads and three-phase induction motors
  • number of contacts VS120: 1
    number of contacts VS220: 2
    number of contacts VS420, VS425, VS440, VS463: 4

  • it is produced in the configuration of switching and breaking contacts:
    VS120: 10, 01
    VS220: 20, 11, 02
    VS420: 40, 31
    VS425: 40, 31, 22, 04
    VS440: 40, 31, 22, 04
    VS463: 40, 31, 22
  • protection IP 20 - on request we deliver covers that ensure protection IP 40 for all terminals
  • DIN rail or panel mounting

 Technical parameters

  • Rated insulation voltage (Ui): 440V
  • Rated thermal current lth (in AC): 25A
  • Coil control voltage: AC / DC 24V, 48V, 110V, 230V
  • Continuous coil power consumption +/- 10%: 2.6VA / 2.6W (3.8VA / 3.8W for 04 - contact version)
  • Working temperature: -5 ... +55°C
  • Weight: 213g
  • Dimensions: 35 x 85 x 60mm

Documents

Parameters

Rated current (in AC) 25 A
Design 2-MODULES
