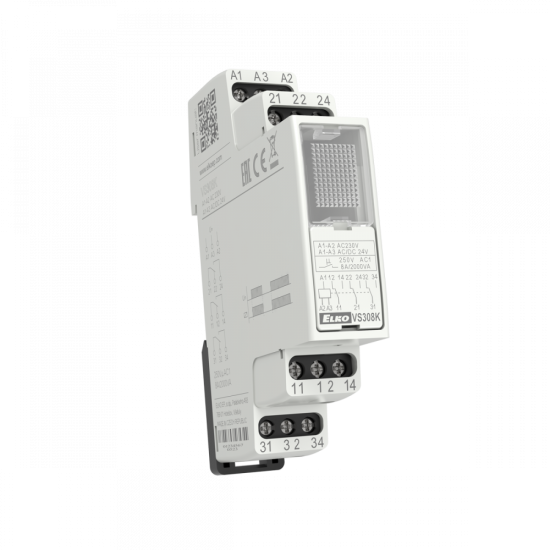

VS308K | Power relay

• Power relay used for switching larger load output, strengthen or „multiplying“ contacts of the existing device.
• Relays VS316/24, VS316/230 enables connection to a 3-phase circuit.
• In the design 1-MODULE , DIN rail mounting, output status indicated by high intensity LED with choice of LED color (red, green, yellow, blue or white LED - Choice of yellow, white or blue LED color for VS series power relays with a minimum quantity of 100 pieces.)
• VS116/B230 MINI, mounting in installation box or ceilings, enabling switching of lights, motors for blinds or awnings.
• For VS116/B230 status of output indicated by LED on the front panel of the device.

More information

• Supply terminals: A1 - A2
• Burden: AC max. 10.3VA / 1.1W
• Supply voltage tolerance: -15%; +10%
• Output indication: large signal area
• Operating temperature: -20°C to +55°C
• Operating position: any
• Mounting: DIN rail EN 60715
• Protection degree: IP40 from front panel
• Dimensions: 90 x 17.6 x 64mm
• Weight: 78g
