TEV-2

Single level waterproof thermostat

Single level waterproof thermostat; temperature range -20 .. + 20 degrees

More

3D MODEL
Manufacturer: ELKO EP

Ord. code: 2925 standard
EAN: 8595188129251

Availability: More than 10 pcs
Price excl. VAT £ 82,00
Your price: £ 98.40 incl. VAT
pcs
Quantity
Price excl. VAT
5-9 pcs
£ 77.90
10-24 pcs
£ 75.85
25-49 pcs
£ 73.80
50-99 pcs
£ 69.70
more than 99 pcs
£ 65.60

Description

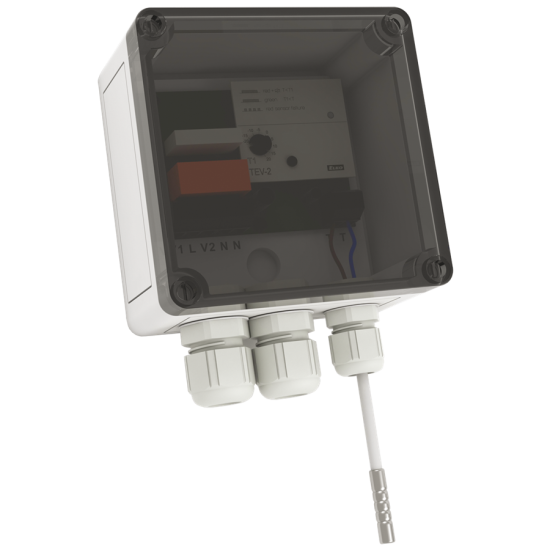

TEV-2 | Thermostat

  • Single thermostat with the possibility of temperature management in adjustable range (it is possible to modify this range or make a special one on request).
  • Used to regulate heating (or cooling) in demanding environments (outside, humidity, dustiness, etc.).
  • The thermostat is placed in a water-proof box with IP65 protection, which enables installation outside, with the in-built sensor.
  • TEV-2: control and indication elements are placed under a transparent cover.
  • TEV-3control and indication elements are placed directly on the cover (for easy orientation and frequent change of temperature).
  • Thermostat status is indicated by LED (2 colors).
  • The function of monitoring sensor disconnection and short-circuit.
  • Output 1x switch / SPDT contact 16A (AC-1).

More information

  • Function: one-level thermostat
  • Supply terminals: L - N
  • Voltage range: 230V AC / 50 - 60Hz
  • Tolerance of voltage range: ± 15%
  • Measuring terminals: T - T
  • Temperature ranges: -20 to 20°C
  • Number of contacts: 1x switch (AgNi)
  • Operation temperature: -30 to 50°C
  • Operation position: any
  • Protection degree: IP65
  • Dimensions: 110 x 135 x 66mm
  • Weight: 266g
