Description

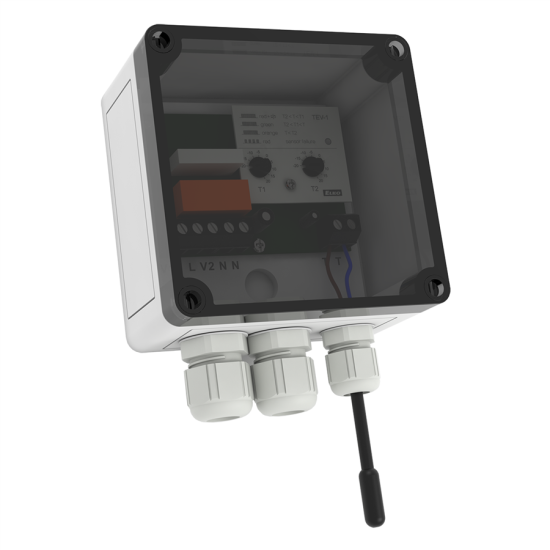

TEV-1 | Thermostat

  • Two-level thermostat with function “WINDOW” meaning that output is switched in case the measured temperature is within a set range (adjustable in the range -20.. +20°C / -4°F to +68°F).
  • Used as protection against freezing (water-shoots, pavements, drives, pipes, etc.) heating is on when the temperature falls under set upper level (e.g. +5°C / +41°F) and off in case it falls under lower level (e.g. -10°C / -50°F, when heating is not able effectively to operate).
  • The thermostat is placed in a water-proof box with IP65, which allows installation outside, with in-built sensor TZ-0.
  • Thermostat status is indicated by LED (3 colors) under a transparent cover.
  • Function monitoring short-circuits and sensor disconnection (break).
  • Output switch contact 16A / SPDT (AC-1).

More information

  • Function: two-level thermostat
  • Supply terminals: L - N
  • Voltage range: 230V AC / 50 - 60Hz
  • Tolerance of voltage range: ±15%
  • Measuring terminals: T - T
  • Number of contacts: 1x switch (AgNi)
  • Operation temperature: -30°C to 50°C (-22°F to 140°F)
  • Operation position: any
  • Protection degree: IP65
  • Dimensions: 110 x 135 x 66mm
  • Weight: 238g

Documents

Parameters

Power voltage 230 V AC
Design Box IP65
Sensor External
Temperature range -20 ... 20 °C
