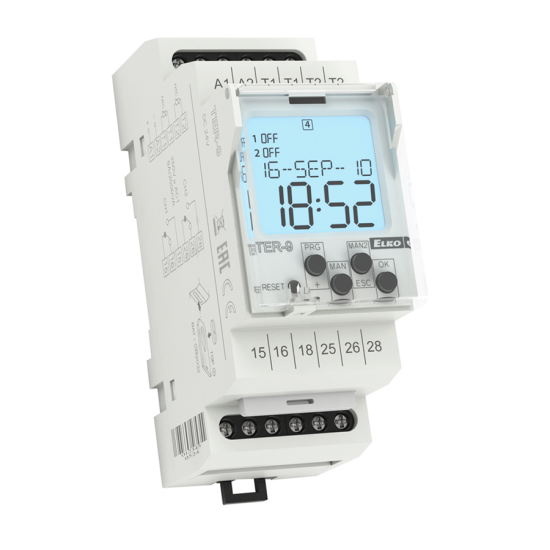

TER-9
TER-9
Thermostat + timer, range -40 .. +110°C, output 2x 8A
Description
TER-9 | Multifunction digital thermostat
- digital thermostat with 6 functions and in-built time switch clock, with a daily and weekly program ( as SHT-1). Thermo functions can also be managed in real-time
- complex control of heating and water heating in a house, solar heating...
- 2 thermostats in one, 2 temperature inputs, 2 outputs with potential-free contact
- universal maximum and variable thermostat containing all common thermostatic functions
- functions: two independent thermostats, 1x dependent, differential thermostat, 2-stage thermostat, thermostat with a dead zone, heating functions
- program setting of output function, calibration of sensors according to reference temperature (offset)
- the thermostat is subject to digital clock programs
- wide working range of set temperatures, the possibility of measurement in °C and °F
- well-arranged display of set and measured data, illuminated LCD by the backlight
- supply AC 230V or AC/DC 24V
- backup of data and time with battery help (battery reserve up to 3 years)
- easy replacement of the backup battery using the plug-in module located on the front panel of the device (without disassembly)
- output contact 1x switch 8A / 250V AC1 for each output
- 2-MODULE, DIN rail mounting
More information
- Number of functions: 6
- Power terminals: A1 - A2
- Supply voltage: AC 230V (AC 50 - 60Hz) galvanically isolated / AC / DC 24V galvanically unseparated
- Power consumption: max. 4VA
- Supply voltage tolerance: -15%; + 10%
- Backup battery type: CR 2032 (3V)
- Measuring terminals: T1-T1 and T2-T2
- Temperature range: -40 .. +110°C
- Number of contacts: 1x switch for each output (AgNi)
- Number of memory locations: 100
- Program: daily, weekly, yearly
- Data display: LCD display, backlit
- Working temperature: -10 .. +55°C
- Working position: any
- Mounting: DIN rail EN 60715
- Protection: IP40 from the front panel / IP20 terminal
- Dimensions: 90 x 35.6 x 64mm
- Weight: 120g
Documents
Parameters
Power voltage | 24 V AC, 230 V AC |
---|---|
Design | 2-MODULES |
Sensor | External |
Temperature range | -40 ... 110 °C |
