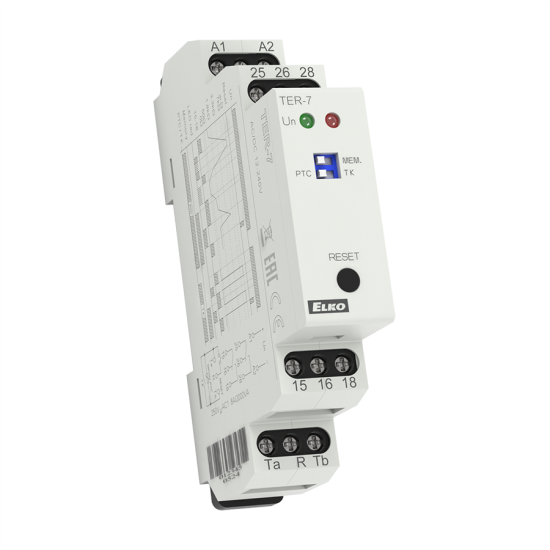

TER-7 | Thermostat for monitoring temperature of the motor winding

  • It monitors the motor coil temperature.
  • Fixed levels of switching.
  • PTC sensor is used for sensing, it is in-built in motor winding by its manufacturer or there is used an external PTC sensor.
  • MEMORY function - relay is blocked in an error state until operator intervention (press RESET button).
  • RESET of faulty state: a) button on the front panel b) by external contact (remote by two wires).
  • The function of short-circuit or sensor disconnection monitoring, red LED flashing indicates a faulty sensor.
  • Output contact: 2x switches / DPDT 8A / 250V AC1.
  • State of exceeded motor temperature is indicated by the red LED
  • 1-MODULE, DIN rail mounting.
  • Terminals of the sensor are galvanically separated, they can be shorted out by terminal PE without damaging the device.
  • in the case of the mains supply, the neutral conductor must be connected to terminal A2!
  • Multivoltage supply AC/DC 24 - 240V.

More information

  • Function: monitoring temperature of motor winding
  • Supply terminals: A1-A2
  • Voltage range: AC/ DC 24 - 240V (AC 50 - 60Hz)
  • Operating range: -15%; +10%
  • Number of contacts: 2x switches (AgNi)
  • Operating temperature: -20°C to 55°C (-4°F to 131°F)
  • Operating position: any
  • Mounting: DIN rail EN 60715
  • Protection degree: IP40 from front panel / IP20 terminals
  • Dimensions: 90 x 17.6 x 64mm (3.5˝ x 0.7˝ x 2.5˝)
  • Weight: 83g (2.9oz.)
