Single thermostat for temperature monitoring and regulation in range 0 to +60°C (32°F to 140°F).
It can be used for temperature monitoring e.g. in switchboards, heating systems, liquids, radiators, motors, devices, open spaces, etc. • Fixed hysteresis at 1°C / (1.8°F).

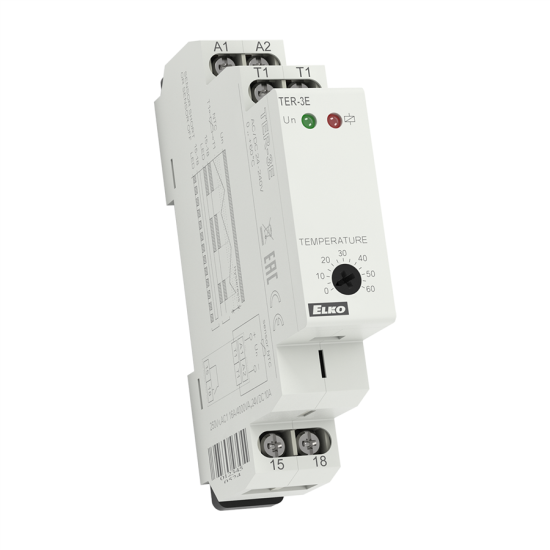

TER-3E: choice of external temperature sensors with double insulation in standard lengths 3 (9.8´), 6 (19.7´) and 12m (39.4´).
TER-3F: the sensor is a part of the device, serves for monitoring temperature in a switchboard.
Supply voltage AC /DC 24 - 240V.
Output contact 1x NO- SPST 16A / 250V AC1.
Output status is indicated by a red LED.
1-MODULE, DIN rail mounting
More information
Function: single level
Supply terminals: A1-A2
Voltage range: AC/DC 24 - 240V (AC 50 - 60Hz)
Operating range: - 15%; +10%
Measuring terminals: T1 - T1
Temperature ranges: 0.. +60°C
Sensor: thermistor NTC
Number of contacts: 1x switch (AgSnO2)
Operating temperature: -20°C to 55°C
Operating position: any
Mounting: DIN rail EN 60715
Protection degree: IP40 from front panel / IP10 terminals
