Description

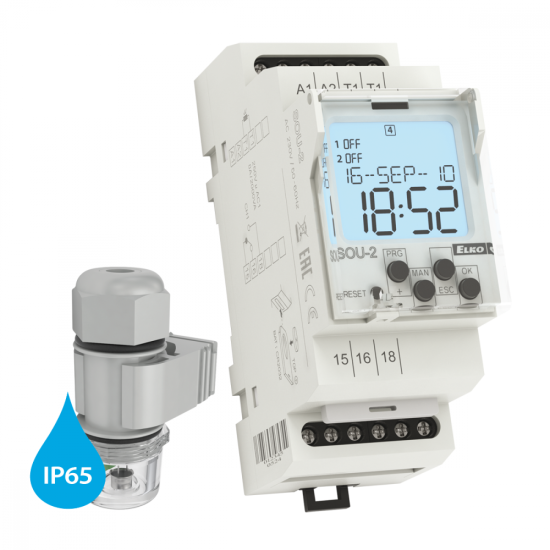

 SOU-2 | Twilight switch with a timer + SKS photosensor

  • serves for lighting control based on the level of ambient light intensity and real-time (a combination of SOU-1 and timer)
    SHT-3 in one)
  • the advantage is the possibility of blocking the function of the twilight switch at a time when the switched on lighting appears to be uneconomical (night hours,
    weekend etc.)
  • adjustable light intensity level 10-50000 lx
  • the random switching function allows you to simulate the presence of people when no one is at home
  • switching: according to the program (AUTO) / permanently manually / randomly (CUBE)
  • external sensor with IP44 protection with adaptation for wall/panel mounting (cover and sensor holder included)
  • the sealable transparent front panel cover
  • backup of data and time with battery help (battery reserve up to 3 years)
  • easy replacement of the backup battery using the plug-in module located on the front panel of the device (without disassembly)
  • in 2-MODULE version, DIN rail mounting
  • Twilight switches with external photosensor for switching street and garden lighting, the lighting of advertisements, shop windows, offices and halls based on the level of ambient light intensity and real-time.

 More information

  • Power terminals: A1 - A2
  • Power consumption: max. 4 VA
  • Supply voltage tolerance: -15%; + 10%
  • Real-time backup: yes
  • Backup battery type: CR 2032 (3V)
  • Daylight saving time: automatic
  • Switching power: 2000 VA / AC1, 240 W / DC
  • Real reserve. time at voltage disconnection: up to 3 years
  • Adjustable light intensity: 10-50000 lx
  • Program: daily, weekly, yearly
  • Data display: LCD display, backlit
  • Working temperature: -10 .. +55 ° C
  • Working position: any
  • Mounting: DIN rail EN 60715
  • Protection: IP40 from the front panel / IP20 terminal
  • Dimensions: 90 x 35.6 x 64 mm
  • Weight: 127 g





Documents

Parameters

Time range Day, Week, Month, Year
Functions Real time switching
Power voltage 230 V AC
Settings Buttons
Design 2-MODULES
Output contact 1 x changeover 8 A
