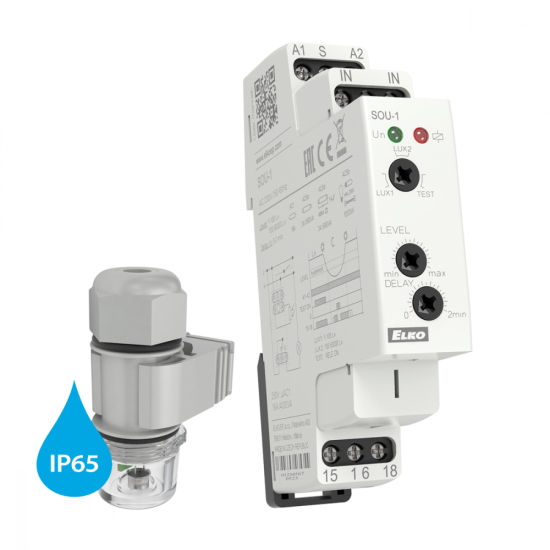

SOU-1 + photosensor SKS

Twilight switch SOU-1 and photosensor SKS

Incl. external sensor

More

3D MODEL
Manufacturer: ELKO EP

Ord. code: SOU-1 + fotosenzor SKS

Original price £ 33.60 -25% TOP
Price excl. VAT £ 25,20
Your price: £ 25.20 excl. VAT
Specify product selection
Variant does not exist
pcs
Power voltage Availability Price excl. VAT Quantity
SOU-1 + photosensor SKS 230 V AC More than 200 pcs £ 25.20
SOU-1 + photosensor SKS 12-240 V AC/DC (UNI) More than 100 pcs £ 25.20

Description

SOU-1 | Twilight switch + SKS photosensor



  • It is used to control lights on the basis of ambient light intensity.
  • Used for switching street illumination and garden lights, illumination of advertisements, shop windows, etc.
  • It monitors the lighting level via an external sensor and switches the output according to the level set on the device
  • Control input for blocking the output, e.g. by a timer
  • Level of illumination adjustable in two ranges: 1 - 100lx and 100 - 50000lx.
  • Adjustable time delay to eliminate short term fluctuation in illumination.
  • External sensor IP44 suitable for mounting on the wall (cover and holder of a sensor are a part of the package).
  • Supply voltage AC 230V or AC/DC 12 - 240V.
  • Output contact: 1x switch
  • Red LED output indication.



More information

  • Supply terminals: A1 - A2
  • Supply voltage tolerance: -15%; +10%
  • Supply indication: green LED
  • Time delay: 0 - 2 min
  • Time delay setting: potentiometer
  • Operating temperature: 20°C to +55°C
  • Operating position: any
  • Mounting: DIN rail EN 60715
  • Protection degree: IP40 from front panel / IP20 terminals
  • Dimensions: 90 x 17.6 x 64mm
  • Weight: 75g



COST-EFFECTIVE SET OF TWILIGHT SWITCH SOU-1 WITH SENSOR.
