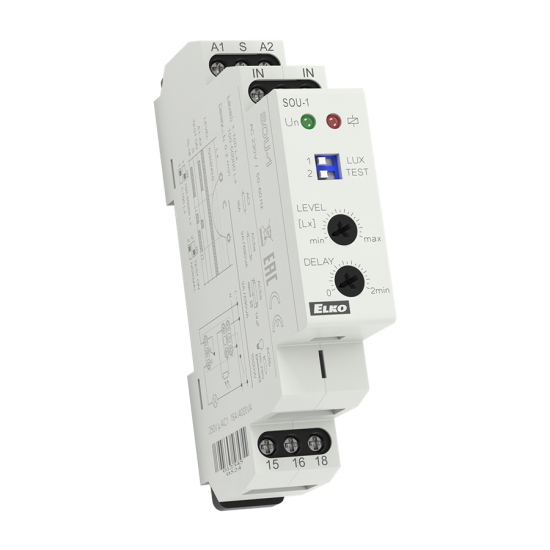

SOU-1 | Twilight switch

• It is used to control lights on the basis of ambient light intensity.
• Used for switching street illumination and garden lights, illumination of advertisements, shop windows, etc.
• The level of ambient intensity is monitored by an external sensor and output is switched according to set level on the device.
• Control input for additional control, e.g. time switch, pre-switch, etc.
• Level of illumination adjustable in two ranges: 1 - 100lx and 100 - 50000lx.
• Adjustable time delay to eliminate short term fluctuation in illumination.
• External sensor IP44 suitable for mounting on the wall (cover and holder of a sensor are a part of the package).
• Output contact: 1x switch 16A
• Red LED output indication.
• 1-MODULE, DIN rail mounting

More information

• Power terminals: A1 - A2
• Power voltage: AC/DC 12 - 240V nebo AC 230V (50 - 60Hz)
• Power consumption: AC 0.7 - 3VA / DC 0.5 - 1.7W
• Supply voltage tolerance: -15%; +10%
• Supply indication: green LED
• Time delay setting: potentiometer
• Number of contacts: 1x switch (AgSnO₂)
• Operating temperature: 20°C to +55°C
• Operating position: any
• Mounting: DIN rail EN 60715
• Protection degree: IP40 from front panel / IP20 terminals
• Length of connecting wire to the sensor: max. 50m (ordinary wire)
• Dimensions: 90 x 17.6 x 64mm
• Weight: 75g

THE SENSOR IS NOT INCLUDED IN THE PACKAGE.
