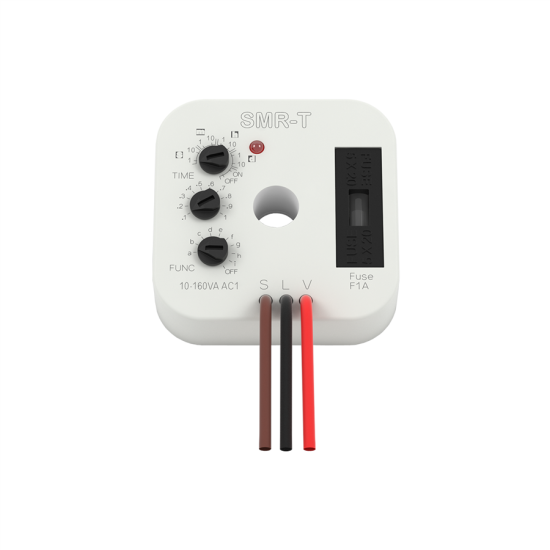

SMR-T | Super-multifunction relay

• Multifunction relay designed for installation into a wiring box or under a wall-switch in an existing electrical installation.
• An advantageous and fast solution for exchanging a standard wall-switch for a switch controlled by time or for an impulse relay controlled by a button.
• 3-wire connection works without the connection of a neutral conductor
• Power output: 10 - 160 VA
• Between input S and the neutral wire, it is possible to connect any load R, L, or C - but not necessary (unlike SMR-K)

More information

• Number of functions: 9
• Connection: 3-wire, without neutral
• Voltage range: AC 230 V / 50 - 60 Hz
• Time setting: rotary switch
• Operating position: any
• Mounting: free at connecting wires
• Protection: IP30 under normal conditions
• Dimensions: 49 x 49 x 13 mm (1.9˝x 1.9˝x 0.5˝)
• Weight: 26 g (0.92 oz.)
