Description

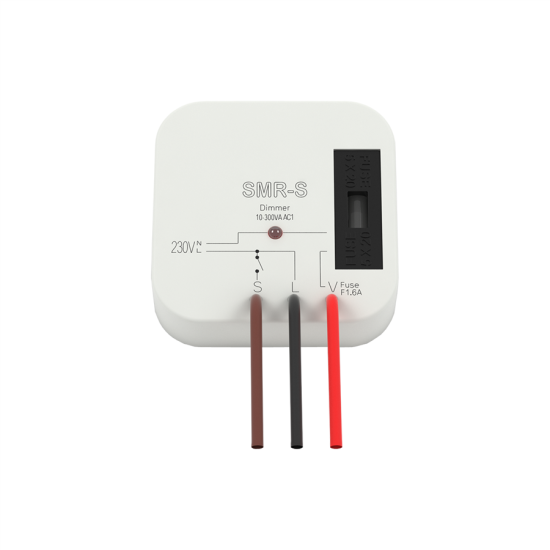

SMR-S | Controlled dimmer

  • Universal dimmer with load adjustment (R, L, C, ESL, LED) brings the possibility of dimming 90% of dimmable light sources on the market.
  • The basic dimmer for the lowest price is intended for installation in an installation box in an existing electrical installation
  • Button-controlled dimmers designated for flush mounting into a wiring box.
  • Possible to control from more places (parallel connections).
  • Protection against temperature overheating inside the device.
  • Designated for dimming bulbs, halogen lights, and halogen lights with winding transformers and a Dimmable LED.
  • 3-wire connection, functional without neutral
  • Max. load: 300VA (bulbs or halogen lights with wound transformer)
  • Contactless output -1x triac
  • With an exchangeable fuse.

More information

  • Connection: 3-wire con., without neutral
  • Supply voltage: 230V AC / 50Hz
  • Operating position: any
  • Mounting: free at connecting wires
  • Protection degree: IP30 in standard conditions
  • Fuse: F 1.6A / 250V
  • Dimensions: 49 x 49 x 13mm
  • Weight: 32g

Documents

Parameters

Type of dimmable load R - resistive, L - inductive, LED
Power voltage 230 V AC
Design BOX
