Description

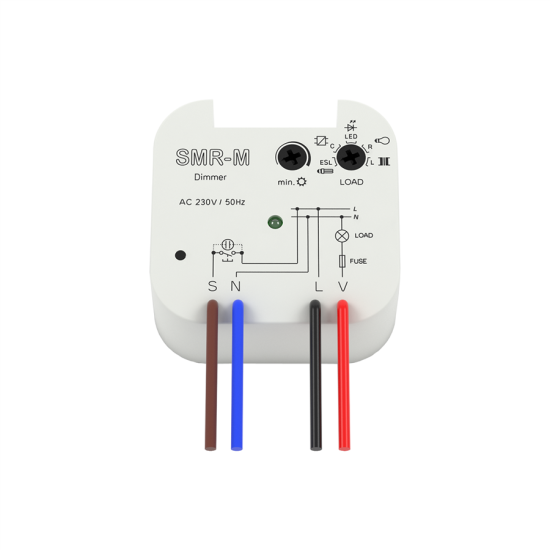

SMR-M | Universal dimmer

  • Universal dimmer with load adjustment (R, L, C, ESL, LED) brings the possibility of dimming 90% of dimmable light sources on the market.
  • Designed for dimming light bulbs, halogen lamps with wound or electronic transformer, dimmable energy-saving bulbs and dimmable LEDs
  • Allows continuous adjustment of light intensity with the button or buttons in parallel
  • When switched off, the set brightness level is stored in memory and when switched on again, the brightness is already set to this value
  • The type of light source is set by a switch on the instrument panel
  • Setting the minimum brightness with the potentiometer on the instrument panel eliminates the flickering of different types of energy-saving bulbs
  • Button-controlled dimmer intended to be installed in an installation box into the existing electrical wiring.
  • Protection against excessive temperature inside the device - switches off the output.

More information

  • Power terminals: x
  • Connection: 4-wire with "ZERO"
  • Supply voltage: AC 230V / 50Hz
  • Supply voltage tolerance: -15%; + 10%
  • Power consumption (apparent): max. 1.5VA
  • Power indication: green LED
  • Control voltage: AC 230V
  • Operating temperature: -20°C to +35°C
  • Operating position: any
  • Mounting:  free at connecting wires
  • Protection degree: IP 30 in standard conditions
  • Dimensions: 49 x 49 x 21mm
  • Weight: 38g



Documents

Parameters

Type of dimmable load R - resistive, L - inductive, C - capacitive, ESL - energy saving lamps, LED
Power voltage 230 V AC
Design BOX
