Description

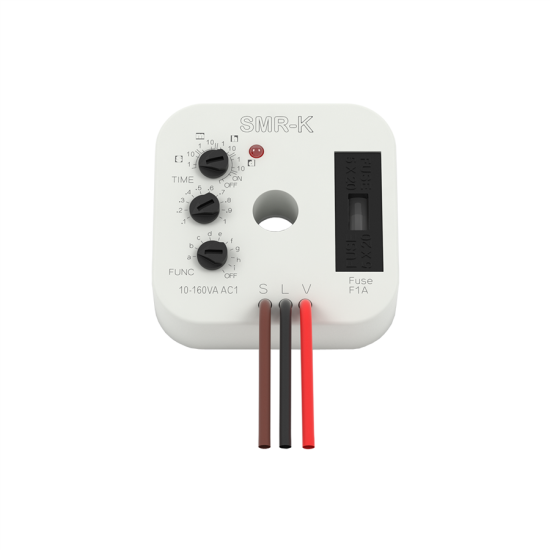

SMR-K | Super-multifunction relay

  • Multifunction relay designed for installation into a wiring box or under wall-switch in an existing electrical installation.
  • An advantageous and fast solution for exchanging a standard wall-switch for a switch controlled by time or for an impulse relay controlled by a button.
  • 3-wire connection works without the connection of a neutral conductor
  • Power output: 10-160 VA
  • For the flawless function of the product, it is necessary for a load R, L or C between input S and the neutral wire

More information

  • Number of functions: 9
  • Connection: 3-wire, without neutral
  • Voltage range: AC 230 V / 50 - 60 Hz
  • Time setting: rotary switch
  • Number of contacts: 1 x triac
  • Operating position: any
  • Mounting:  free at connecting wires
  • Protection: IP30 under normal conditions
  • Dimensions: 49 x 49 x 13 mm (1.9˝x 1.9˝x 0.5˝)
  • Weight: 26 g(0.92 oz.)
