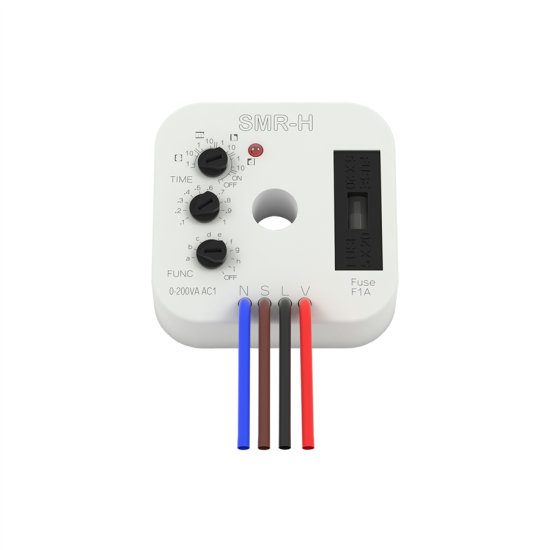

SMR-H | Super-multifunction relay

• Multifunction relay designed for installation into a wiring box or under wall-switch in an existing electrical installation.
• An advantageous and fast solution for exchanging a standard wall-switch for a switch controlled by time or for an impulse relay controlled by a button.
• 4-wire connection
• Power output: 0 - 200 VA

More information

• Connection: 4-wire, with "ZERO"
• Voltage range: AC 230 V / 50 - 60 Hz
• Number of contacts: 1 x triac
• Operating position: any
• Mounting: free at connecting wires
• Protection: IP30 under normal conditions
• Dimensions: 49 x 49 x 13 mm (1.9˝x 1.9˝x 0.5˝)
• Weight: 27 g (0.95 oz.)
