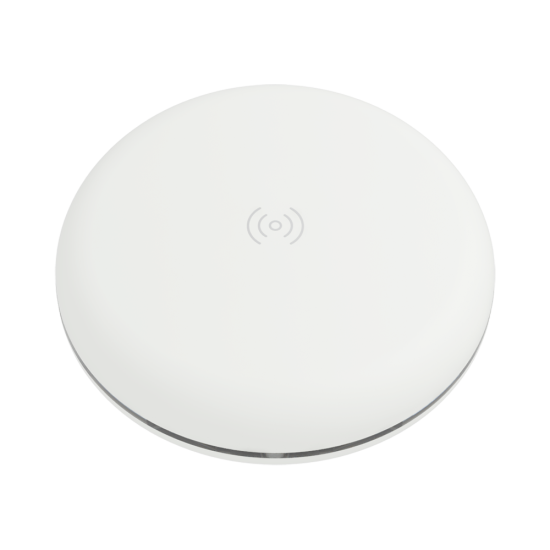

Smart gateway eLAN-204

• The smart gateway enables control of iNELS Wireless and iNELS Home components from applications (smartphones, tablets, voice assistants) and other third-party devices using MQTT communication.
• Up to 70 iNELS Wireless devices or 20 iNELS Home devices can be connected, and it processes set programs for automatic control, time scenarios, or schedules for heating control.
• Thanks to two-way communication, it displays the current status of individual elements and sends push notifications about their status.
• It provides a connection to the iNELS Cloud for remote control without the need for a static IP or advanced automation settings.
• It can be placed anywhere on a horizontal surface, and thanks to its flat surface and removable base, it can also be mounted on a wall or ceiling.
• Powered by a 5 V DC/2 A adapter, USB-C connector (included).

TECHNICAL PARAMETERS

• Communication protocol: RFIO, RFIO2, RFIO3
• Signal transfer method: two-way addressed message
• Wi-Fi Antenna: integrated
• Power source: Plug or USB-C 5 V DC
• Supply voltage/current: Plug 10-27 V DC / USB 5 V DC 1A
• Dimmensions. ø 95mm x25 mm
