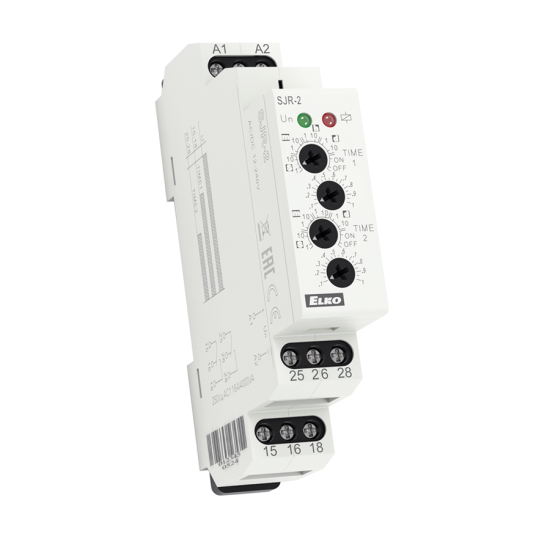

SJR-2 - Power voltage: 230 V AC

Doublestage delay unit

1 function; time 0.1s - 10 days; 2x16A switches

More

3D MODEL
Manufacturer: ELKO EP

Ord. code: 8396 standard
EAN: 8595188116015

Availability: More than 10 pcs
Price excl. VAT £ 39,50
Your price: £ 47.40 incl. VAT
Specify product selection
Variant does not exist
pcs
Quantity
Price excl. VAT
5-9 pcs
£ 37.53
10-24 pcs
£ 36.54
25-49 pcs
£ 35.55
50-99 pcs
£ 33.58
more than 99 pcs
£ 31.60
Power voltage Availability Price excl. VAT Quantity
SJR-2 - Power voltage: 230 V AC 12-240 V AC/DC (UNI) More than 50 pcs £ 43.50
SJR-2 - Power voltage: 230 V AC 230 V AC More than 10 pcs £ 39.50

Description

SJR-2 | Double-stage delay unit

  • For gradual switching of high power (e.g. heating), prevents current surges in the mains.
  • Function: 2x Delay ON (2 time relays in one).
  • Time scale 0.1s - 10 days divided into 10 time ranges: 0.1s - 1s / 1s - 10s / 0.1min - 1min / 1min - 10min / 0.1h - 1h / 1h - 10hrs / 0.1 day - 1day / 1day - 10days / ON / OFF
  • Times t1 and t2 are independently adjustable.
  • t1 and t2 are switched on after supply voltage connection.
  • Rough time setting via rotary switch.
  • Voltage range: AC 230V or AC/DC 12 - 240V.
  • Output contact: 2 x switches / DPDT 16A.
  • Output indication: multifunction red LED, flashing in certain states.

More information

  • Supply terminals: A1 - A2
  • Supply indication: green LED
  • Operating position: any
  • Mounting: DIN rail EN 60715
  • Protection degree: IP40 from front panel / IP20 terminals
  • Dimensions: 90 x 17.6 x 64mm
  • Weight: 88g
