Description

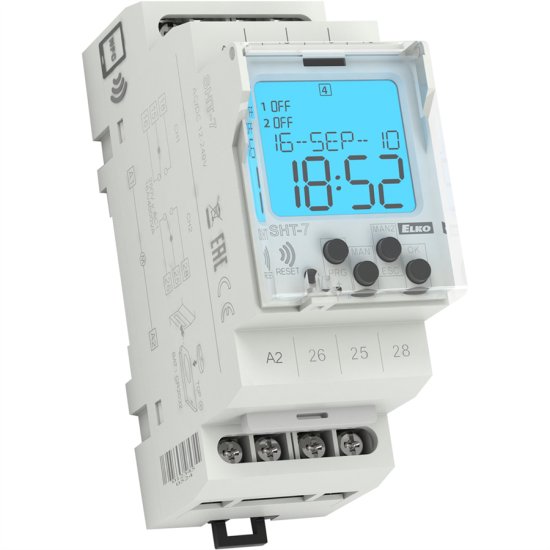

SHT-7 | Time switch clock with NFC programming capability

  • Digital switch timer clock with day and year program and setting via smartphone supporting NFC transfer
  • Timer switch - switching based on real-time in day and week mode
  • 100 memory locations for on / off setting
  • OFF line setting of programs in the application
  • Backup/insertion into the phone memory for transfer to the next timer switch
  • two-channel design, where each channel is programmable independently of the other.
  • automatic switching between winter and summer time.
  • sealable transparent cover on the front panel.
  • data and time backup using the battery.
  • battery life - up to 3 years.
  • easy replacement of the backup battery through the plug-in module, no disassembling is required.
  • supply voltage: AC 230V.

More information

  • Power supply terminals: A1 - A2
  • Supply voltage: AC 230V / 50 - 60Hz
  • Supply voltage tolerance: -15%; +10%
  • Real-time backup: yes
  • Number of contacts: 2x switch (AgSnO2)
  • battery life - up to 3 years.
  • Program data retention time: min. 10 years
  • Number of memory locations: 100
  • Data display: LCD display, backlit
  • Operating temperature: -20.. +55°C (-4°F to 131°F)
  • Operating position: any
  • Mounting: DIN rail EN 60715
  • Protection degree: IP10 terminals, IP40 from the front panel
  • Dimensions: 90 x 35.6 x 64mm
  • Weight: 129g (without battery)
