Description

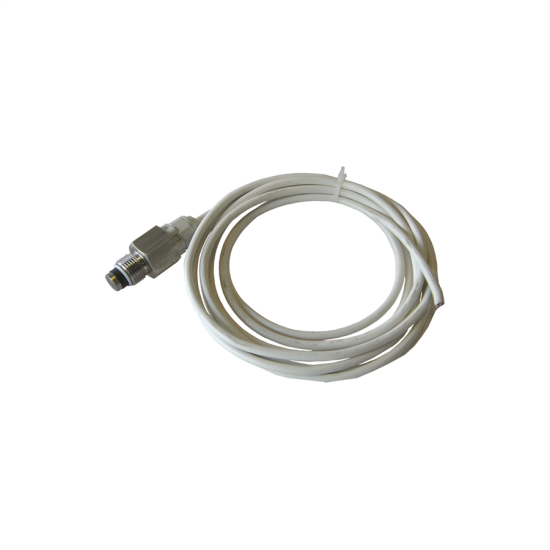

SHR-3 | Level probe

  • stainless probe to be used in demanding industrial environments, designated for screwing into tank wall or cover
  • suitable for use in drinking water
  • the probe is installed horizontally, vertically, or in a sidelong position on the tank side or in-tank cover. Installation is done by soldering or by fixing nut. It is necessary to use a 24 mm screw. It is necessary to use an adequate torque with regards to a seal and operational overpressure in a tank
  • the sensor has a connecting wire - length 3m, which is connected to the sensor to scan electrode and sensor housing
  • connecting wire is double-wire PVC 2 x 0.75 mm2, a connection of wires: brown - scan electrode, blue - sensor housing
  • connection M18x1.5 screw protection degree IP 67,
  • sensor weight without cable: 100g
  • operating surroundings: a place without the danger of detonation, the temperature on screw: max. 95°C,
  • pressure resistance: on 25°C 4MPa, on 95°C 1.5 MPa
  • weight: 239g
  • material: housing and sensing electrode: stainless steel W.Nr. 1.4301, insulating electrode insert: PTFE
  • internal material: self - extinguishing epoxide resin
  • core connection: brown - sensing electrode, blue - sensor housing
