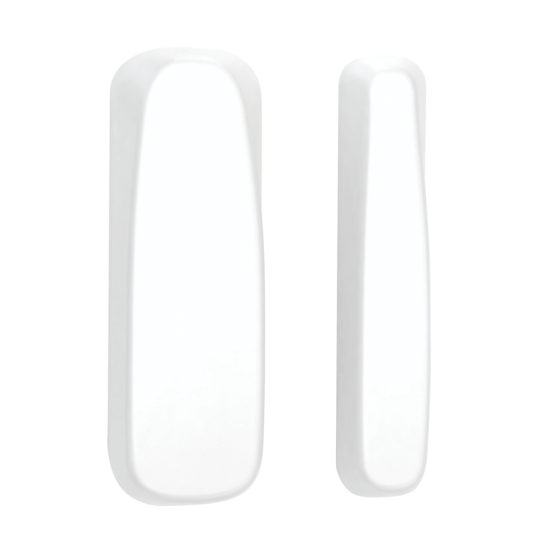

RFWD-100

Window / door detector

It consists of two parts: a transmitter and a magnet. Activation occurs by moving the magnet away from the transmitters. Used for detection of open doors, windows, gates, garage door etc. Detection can activate switch units or can be displayed on the smartphone.

More

3D MODEL
Manufacturer: ELKO EP

Ord. code: 5027 standard
EAN: 8595188150279

Availability: More than 10 pcs
Original price £ 56 -25%
Price excl. VAT £ 42,00
Your price: £ 42 excl. VAT
pcs

Description

RFWD-100 | Window / Door detector

  • The window/door detector is used to detect opening where activation occurs when the magnet and the sensor become separated.
  • Use:
    • in combination with the switching unit for automatic light control (cellar, garage, etc.), or switching on a GSM gate
    • by means of the Smart RF box, detection can be displayed on your smartphone in the form of notification; alarms are stored in history,     which is visualized in the application iHC.
  • Anti-tamper function: an alarm is triggered if there is an unauthorized interference to the detector.
  • Power supply: battery 3V / CR2032, the battery life is around 1 year, … thanks to the ability to turn off the LED indicator it is possible to extend up to 3 years.
  • “Low Battery” Alerts on Your iHC App.
  • The detectors are compatible with switching components marked with the iNELS RF Control2 RFIO2 communication protocol and the eLAN-RF system components.
  • Communication with bidirectional RFIO protocol.

Technical parameters

  • Power supply: battery 1x 3V CR2032
  • Drained battery indicator: yes
  • Transmission frequency: 866MHz, 868MHz, 916MHz
  • Working temperature: -10.. +50°C
  • Protection: IP20
