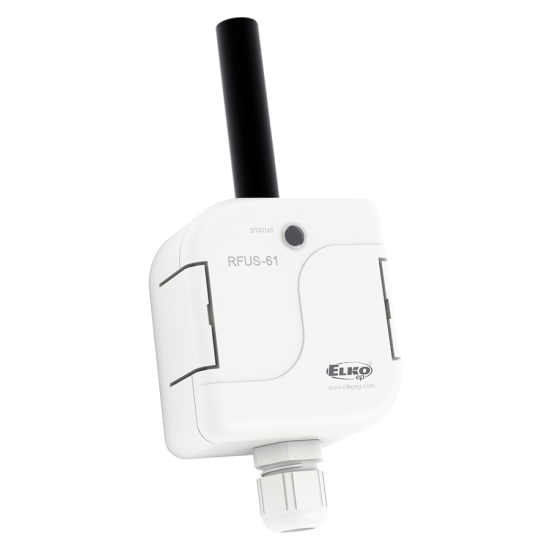

RFUS-61 | Switching element for outdoor use

• The switching element with 1 12A output contact with increased IP65 protection is suitable for installation in demanding and outdoor areas.
• They can be combined with detectors, controllers, or iNELS RF Control system elements.
• Multi-function design – button, impulse relay, and time function of delayed ON or OFF with a time setting of 2s-60 min.
• The switching unit may be controlled by up to 25 channels
• The programming button on the unit is also used for manual control of the output.
• Memory status can be pre-set in the event of a power failure.
• Range up to 200m (in open space), if the signal is insufficient between the controller and unit, use the signal repeater RFRP-20 or protocol component RFIO2 that supports this feature.
• Communication frequency with bidirectional protocol iNELS RF Control² (RFIO²).
• Increased IP65 protection is suitable for wall mounting and in demanding environments such as cellars, garages, bathrooms…

Technical parameters

• Supply voltage: 230V AC / 50-60Hz
• RF command from the transmitter: 866MHz, 868MHz, 916MHz
• Range in open space: up to 200m
• Operating temperature: -15 up to + 50°C
• Operating position: any
• Mounting: screws
• Protection: IP65
• Dimensions: 136 x 62 x 34mm
• Weight: 146g
