RFTC-50/G
RFTC-50/G
Autonomous temperature controller
Description

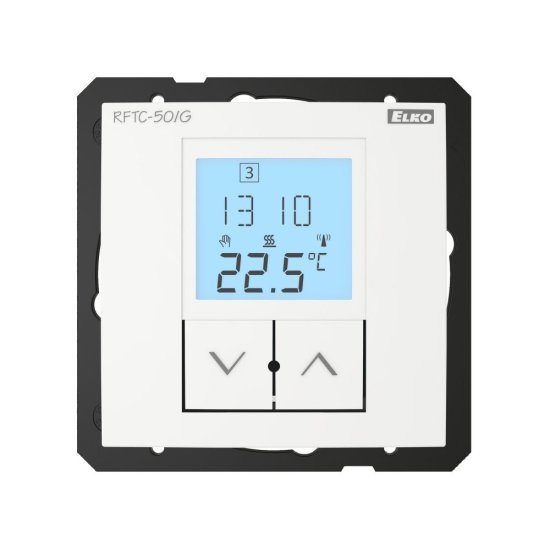

RFTC-50/G | Wireless temperature controller
SEMI-COMPLETE = mechanism + cover
- RFTC-50 / G is a separate thermostat that allows wireless control of up to 4 switching elements RFSA-6x / RFUS-61 / RFSTI-11B.
- Temperature measurement with a built-in sensor in the range 0..55°C, temperature setting in the range 0 .. + 55°C in the weekly program
- The backlit LCD display displays the current and sets the temperature, status (ON/OFF), battery status, day of the week, current time, etc.
- Battery power (1.5V / 2xAAA - included in supply) with a battery life of around 1 year based on the frequency of use.
- Range up to 100m (in open space), if the signal is insufficient between the controller and unit, use the signal repeater RFRP-20 or protocol component RFIO2 that supports this feature.
- Communication frequency with bidirectional RFIO protocol.
- Color combination of temperature unit in design of frames LOGUS90 (plastic, glass, wood, metal, stone).
Technical parameters
- Supply voltage: 2x 1.5V AAA battery
- Display: LCD, character / see display description
- Backlight: active 10s after pressing
- Transmission indication / function: symbols
- Frequency: 866MHz, 868MHz, 916MHz
- Minimum control distance: 20mm
- Operating position: on the wall
- Mounting: by gluing/screwing
- Protection: IP30
- Weight: 66g (without batteries)
