Description

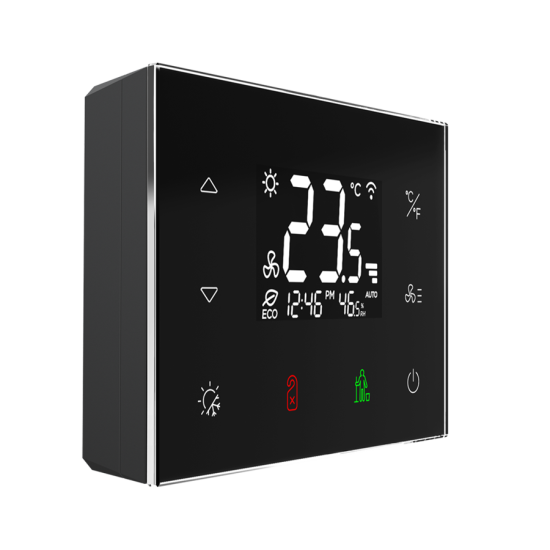

RFTC-3/B | Glass touch thermostat for fancoils

  • Designed to control 2 and 4 pipe fan coils, chillers
  • 3x relays for fan speed (LOW, MEDIUM, High), 2x relays for heating/cooling mode
  • 2x analog outputs 0-10V for proportional control of valves
  • 2x inputs for connecting wired detectors (magnet doors/windows); of which 1 input can
  • Built-in digital temperature and humidity sensor
  • Proximity sensor to activate display backlight/buttons
  • VA/TN LCD display, 8 touch backlit buttons
  • Screwless angle clamps for easy wire connection
  • WiFi for thermostat setup (via web browser) and connection to iNELS Cloud, iNELS APP and MRS via MQTT protocol
  • Modbus RTU for external HVAC devices and higher-level systems
  • Power supply: AC 110 – 230V AC
  • Black or white finish
  • Box for mounting on EU/BS installation boxes
  • Possibility of custom tuning and design modifications (button functions, icon options, logos): icons.inels.com



Technical parameters

  • Power supply voltage: 110 - 230 V AC (50-60 Hz)
  • Analog output: 2 x 0-10 V, 10 mA
  • Radio communications: iNELS RFIO2, frequency 866-922 MHz
  • Wi-Fi: AP 2,4 GHz
  • Modbus: RTU 485
  • Dimension: 120 x 80 x 27 mm
