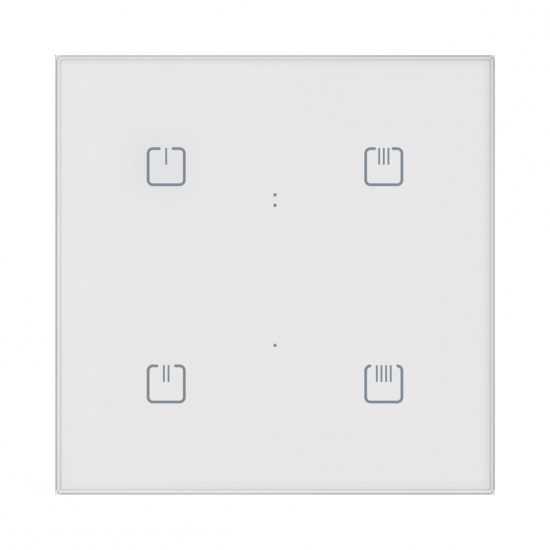

RFSW-62 | Glass touch controller with output relays

• The glass design controller with two output relays is used to control appliances and lights.
• The touch buttons on the circuit breaker allow you to directly control the output relay as well as other components of the installation.
• The backlight intensity (white LED) of the buttons is automatically adjusted depending on the ambient lighting.
• They can be combined with detectors, controllers, iNELS Wireless, or system components.
• 6 functions – button, impulse relay, and time function of a delayed start or return with a time setting of 2 s - 60 min. Any function can be assigned to each output relay.
• Possibility to set the memory of the output state during a power failure and subsequent restoration of the power supply.
• Each of the outputs can be controlled by up to 12/12 channels (1 channel represents one button on the controller).
• Range up to 160 m (in open space), if the signal is insufficient between the controller and unit, use the signal repeater RFRP-20N or protocol component RFIO2 that supports this feature.
• Communication frequency with bidirectional protocol RFIO2.

 Technical parameters

• Number of buttons: 4
• Supply voltage: AC 230 V
• Design: glass sharp
• Color: W - white, B - black
• Dimensions: 94 x 94 x 41 mm
• Protocol: RFIO2
