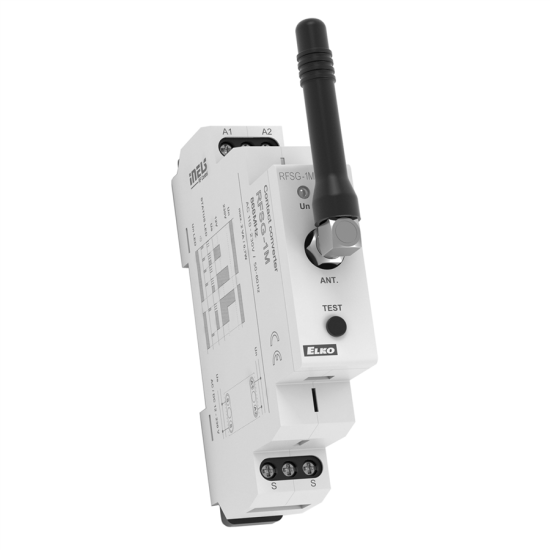

This contact converter is especially appropriate for wireless transmission of information on switching HDO.
Thanks to the network supply, it can also be used for partial transmission of information for control of an appliance or device.
One-module design of the unit with mounting into the switchboard.
After applying a voltage to the “S” terminals, it periodically sends a close command at 10min intervals. When the power supply is disconnected, it immediately sends a command to switch off.
The TEST button on the controller is used to assign a switching unit.
The option of setting light scenes, where with a single press, you can control multiple units of iNELS RF Control.
The package includes an internal antenna AN-I, in case of locating the converter in a metal switchboard, you can use the external antenna AN-E for better signal reception.
Range up to 160m (in open space), if the signal is insufficient between the controller and unit, use the signal repeater RFRP-20 or protocol component RFIO2 that supports this feature.
Communication frequency with bidirectional protocol iNELS RF Control.
1-module design of the element with mounting in a switchboard.
