Description

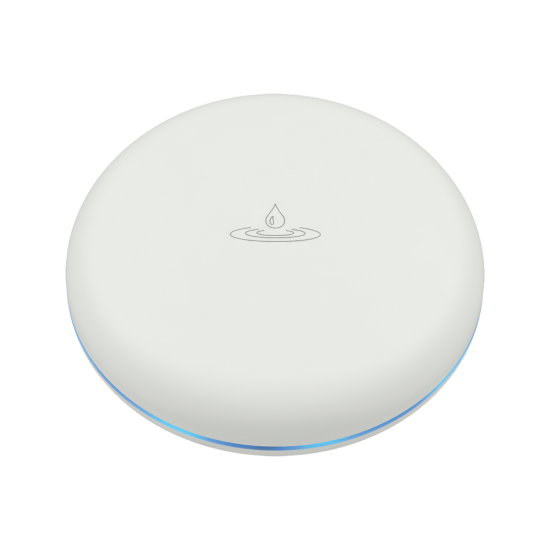

RFSF-100 | Flood detector

  • The flood detector is used to detect water leakage - the activation occurs the moment the flooding of the contacts located on the underside of the detector occurs.
  • Upon detecting water, the flood detector immediately sends a signal to the switched unit, which further switches on a pump, GSM gate or closes a pipe valve.
  • It brings a quick solution to learn about unwanted flooding in your bathroom or kitchen, to which you can immediately respond with a paired actuator. Which can close, for example, the water supply to a flowing washing machine.
  • Flood detection is signaled by vibration, optical and acoustic signaling.
  • Low battery signaling 5 times by flashing the LED every 15 minutes or a warning in the iHC application.
  •  Range up to 160 m (in open space); if the signal is insufficient between the controller and unit, use the signal repeater RFRP-20 or protocol component RFIO2 that supports this feature.

Technical parameters

  • Supply voltage: 2x 1.5 V AAA batteries
  • Alarm detection: optical and audible alarm
  • Frequency: 866 - 922 MHz
  • Signal transmission method: unidirectionally addressed message
  • Range in free space: up to 160m
  • Operating position: capture contacts for flooding downwards
  • Protection: IP62
  • Dimensions: Ø 89 x 23 mm
  • Weight: 92g
