RFSC-61N | Switched socket

• The switched socket is used to control fans, lamps, direct heaters, and appliances, which are connected by a power cord with a plug up to 16 A.
• They can be combined with detectors, controllers, or iNELS RF Control system components.
• Multifunctional design - button, impulse relay, and time functions of a delayed start or return with time setting 2 s - 60 min.
• The switched socket can be controlled by up to 32 channels.
• The programming button on the socket also serves as a manual output control with indication.
• Possibility to set the output status memory in case of failure and subsequent power recovery.
• Range up to 200 m (outdoors) (in case of insufficient signal between the controller and the device, use the RFRP-20 signal repeater) or components with the RFIO2 protocol that support this function.
• Communication with bidirectional RFIO2 protocol.
• Thanks to the socket design, installation is simple and straightforward by plugging it into an existing socket.
• The contact material of the AgSnO2 relay enables the switching of light ballasts.
• Produced in 3 designs of sockets/plugs

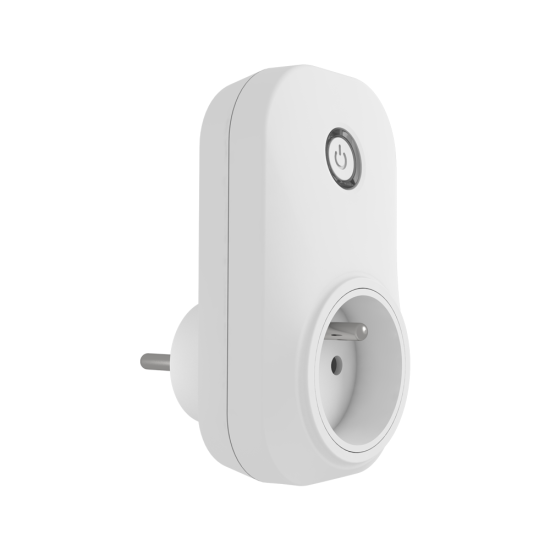

  • French
  • Schuko

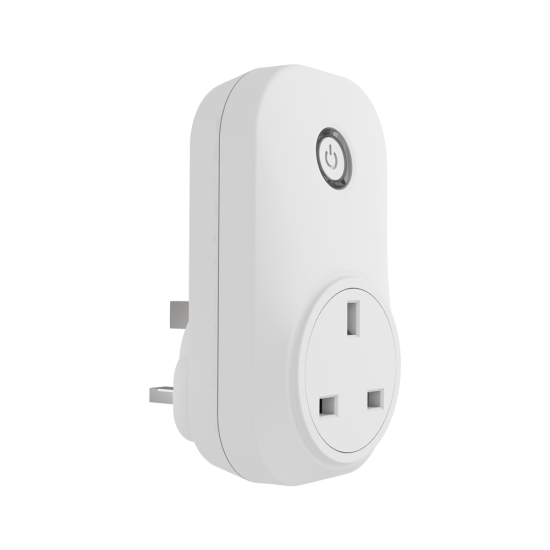

  • British

More information

• Supply voltage: 230 V AC / 50-60 Hz
• Communication protocol: bidirectional RFIO2
• Frequency: 866-922 MHz
• Range: in open space up to 200 m
• Protection: IP30
• Dimensions: 63 x 110 x 74 mm
• Weight: 129
