RFSAI-62B-SL/MT
RFSAI-62B-SL/MT
Switch unit with the inputs for external buttons MATTER
Ord. code: 8975
EAN: 8595188189750
Original price £ 36
-30%
Price excl. VAT £ 25,20
Your price:
£ 30.24
incl. VAT
Description

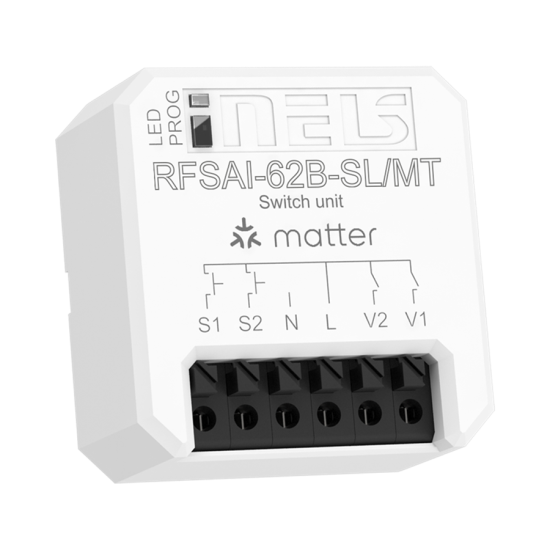

RFSAI-62B-SL/MT | Switch unit with the inputs for external buttons MATTER
- The switching element with two output relays can be used to control some appliances and lights.
- The Thread protocol guarantees compatibility with other products with the Matter support.
- The wireless controllers (RFGB-40-MT) and the existing wired switches/pushbuttons can be used for control.
- The BOX-SL design offers installation directly in the junction box, soffit, or cover of the controlled appliance. Easy connection of wires thanks to the screw-free terminals.
- The applicable reach is up to 200m (in free area).
- The maximum switched power is 2000W (8A), and the relay contact material AgSnO2 + Zero Cross predestines it for switching of lighting loads.
- The reset push button on the element can also be used as manual control of the input.
- The element with the controller can be paired through a border router supporting Matter and through an application supporting Matter. The border router is understood as equipment such as HomePod Mini, Google Nest Hub or Samsung SmartThings Station.
Technical parameters
- Output contacts: 2x switching 8A /AC1
- Supply voltage (frequency): AC 230 V (50-60 Hz)
- Design: BOX + screwless terminals
- Dimensions: 43 x 44 x 22 mm
- Application protocol: Matter
- Communication protocol: THREAD
Documents
manual_rfsai-62b-sl-mt.pdf (pdf, 160.6 kB)
datasheet_rfsai-62b-sl-mt.pdf (pdf, 1 MB)
