Description

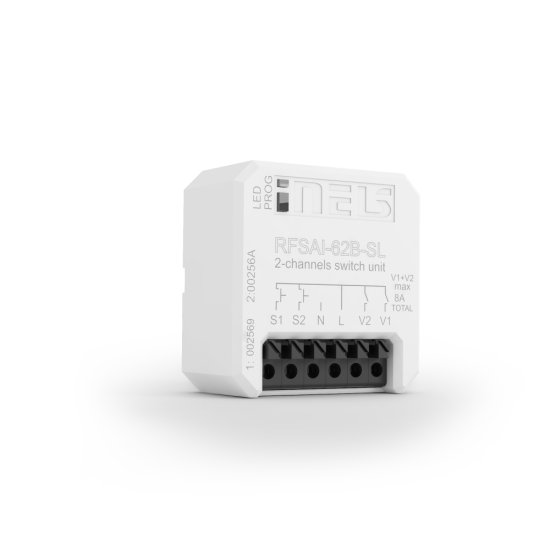

RFSAI-62B-SL | Switching units with inputs for external buttons

  • The switching component with one/two output relays is used to control appliances and lights. Switches/buttons connected to the wiring can be used for control.
  • They can be combined with Detectors, Controllers, or iNELS RF Control System Components.
  • The BOX version offers installation directly in the installation box, ceiling, or cover of the controlled appliance. Easy installation thanks to screwless terminals.
  • It allows the connection of switched loads with a total sum of 8 A (2,000 W).
  • Functions: for RFSAI 61B-SL and RFSAI 62B-SL - pushbutton, impulse relay, and time functions of a delayed start or return with time setting 2 s-60 min.
  • Any function can be assigned to each output relay. For RFSAI-11B-SL, the button has a fixed function - ON / OFF.
  • The external button is assigned in the same way as the wireless one.
  • Each of the outputs can be controlled by up to 12/12 channels (1-channel represents one button on the controller). Up to 25 channels for RFSAI-61B-SL and RFSAI-11B-SL.
  • The programming button on the component also serves as a manual output control.
  • Possibility to set the output status memory in case of failure and subsequent power recovery.
  • The elements of the repeater can be set for the components via the RFAF / USB service device, PC, application.
  • Range up to 200 m (outdoors), in case of insufficient signal between the controller and the device, use the RFRP-20 signal repeater or component with the RFIO2 protocol that supports this function.
  • Communication with bidirectional RFIO2 protocol.
  • The contact material of the AgSnO2 relay enables the switching of light ballasts.

More information

  • Supply voltage: 230 V AC / 50-60 Hz
  • RF command from the transmitter: 866 - 922 MHz
  • Range in open space: up to 200 m
  • Working position: any
  • Mounting: free at lead-in wires
  • Protection: IP40
  • Dimensions: 43 x 44 x 22 mm
  • Weight: 45 g

Documents

Parameters

External buttons YES
Power voltage 230 V AC
Design BOX
Output contact 2 x switching 8 A
