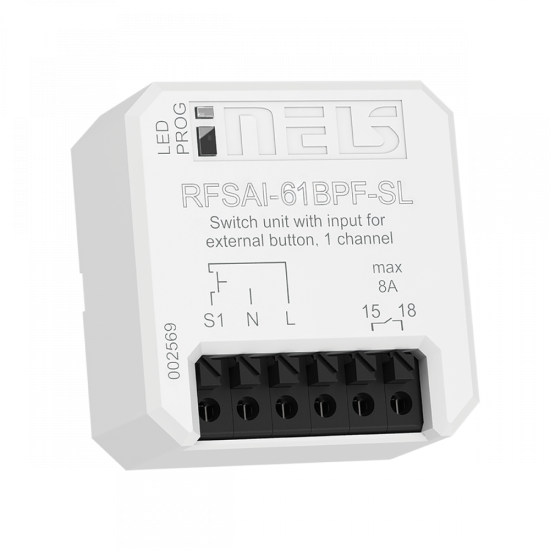

RFSAI-61BPF-SL
RFSAI-61BPF-SL
Switch unit with the inputs for external buttons – (BOX-SL)
Manufacturer: ELKO EP
Ord. code: 8910 standard
EAN: 8595188189101
Original price £ 83.37
-30%
Price excl. VAT £ 58,36
Your price:
£ 58.36
incl. VAT
Description
RFSAI-61BPF-SL | Switch unit with the inputs for external buttons – (BOX-SL)
- The switching component with one/two output relays is used to control appliances and lights. Switches/buttons connected to the wiring can be used for control.
- They can be combined with Detectors, Controllers or iNELS Wireless components.
- The BOX-SL version offers installation directly in the installation box, ceiling or cover of the controlled appliance. Easy installation thanks to screwless terminals.
- It allows the connection of switched loads with a total sum of 8 A (2,000 W).
- Functions: for RFSAI 61B-SL, RFSAI 62B-SL and RFSAI-61BPF-SL - pushbutton, impulse relay and time functions of delayed start or return with time setting 2 s-60 min. Any function can be assigned to each output relay. For RFSAI-11BSL, the button has a fixed function - ON / OFF.
- The external button is assigned in the same way as the wireless one.
- Each of the outputs can be controlled by up to 12/12 channels (1-channel represents one button on the controller). Up to 25 channels for RFSAI 61B-SL, RFSAI 62B-SL and RFSAI-61BPF-SL.
- The programming button on the component also serves as a manual output control.
- Possibility to set the output status memory in case of failure and subsequent power recovery.
- The elements of the repeater can be set for the components via the RFAF / USB service device, PC, or application.
- Range up to 200 m (outdoors), in case of insufficient signal between the controller and the device, use the RFRP-20N signal repeater or component with the RFIO2 protocol that supports this function.
- Communication with bidirectional RFIO2 protocol.
- The contact material of the AgSnO2 relay enables the switching of light ballasts.
Technical parameter
- Output: 1x switching, 8 A
- Supply voltage (frequency): AC 230 V (50-60 Hz)
- Design: BOX
- Dimensions: 43 x 44 x 22 mm
- Protocol: RFIO2
