Description

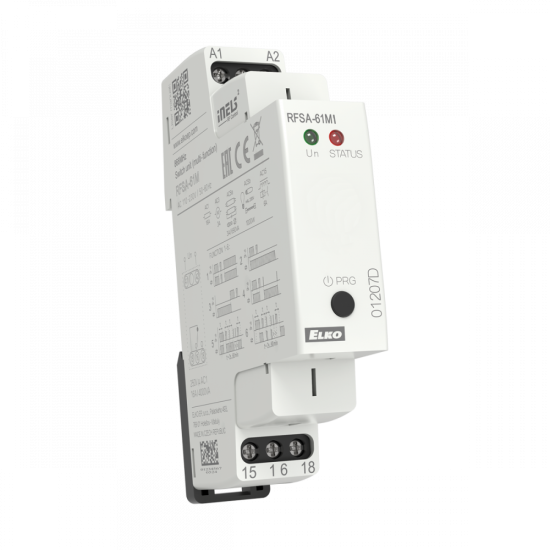

RFSA-61MI/230V Single-channel switching component on DIN rail

  • 6 function: button, impulse relay and time function of delayed start or return with time setting range of 2 s - 60 min.
  • The programming button on the unit is also used for manual control of the output.
  • Memory status can be pre-set in the event of a power failure.

More information

  • Supply voltage: 110-230V AC
  • Supply voltage frequency: 50-60 Hz
  • Dissipated power: 1.62 W
  • Number of contacts: 1x changeover 16 A (AgSnO2)
  • Frequency: 866–922 MHz
  • Manual control: PROG (ON/OFF) button
  • Mounting: DIN rail EN 60715
  • Protection: IP20 from the front panel
  • Dimensions: 90 x 17.6 x 64 mm
  • Weight: 69 g

Documents

Parameters

External buttons NO
Functions Multifunction
Power voltage 120 V AC, 230 V AC
Design 1-MODULE
Output contact 1 x changeover 16 A
