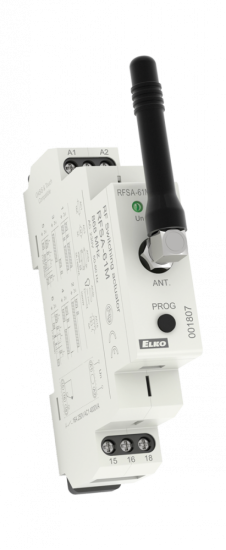

The switching component with 1 output contact 16A is used to control appliances, sockets, or lights.
1-module design of the component with mounting in a switchboard
the switching component can be controlled by up to 25 channels
They can be combined with detectors, controllers, or iNELS RF Control system components.
They can be combined with detectors, controllers or iNELS RF Control system component
Functions: button, impulse relay, and time functions of a delayed start or return with time setting 2s-60 min.
The programming button on the component also serves as a manual output control.
The package includes an internal AN-I antenna, in case of placing the component in a metal switchboard, you can use an external AN-E antenna to improve the signal.
Possibility to set the memory status in case of power failure.
Range up to 200m (outdoors), in case of the insufficient signal between the controller and the component, use the RFRP-20 signal repeater or elements with the RFIO2 protocol that supports this function.
