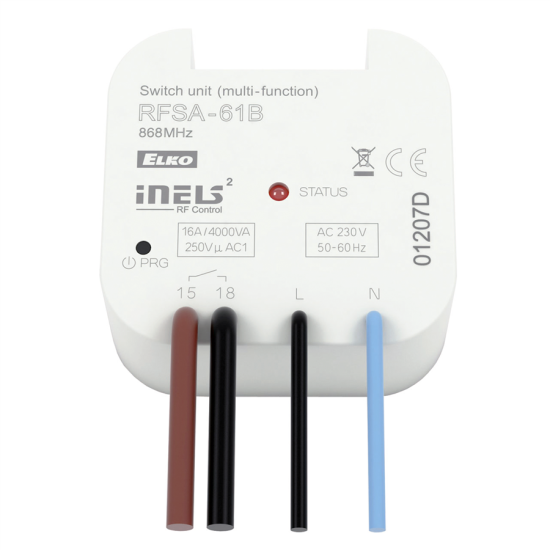

RFSA-61B

Switch unit, 1 channel - MULTI function

6 functions: button ON/OFF, impulse relay, delay ON, delay OFF, output contact: 1x NO 16A

Manufacturer: ELKO EP

Ord. code: 4995 standard
EAN: 8595188136242

On request

Original price £ 52.50 -30%

Price excl. VAT £ 36,75

£ 44.10 incl. VAT

RFSA-61B | Single-channel switch unit - multifunctional

Switch unit with 1 output contact 16A is used to control appliances, sockets, and lights. It can be easily integrated to control garage doors or gates.
They can also be combined with detectors, controllers or iNELS RF Control system elements.
RFSA-11B, single-function design: on / off.
RFSA-61B, multifunctional design: pushbutton, impulse relay and time functions of a delayed start or return with time setting 2s - 60min. See page 70 for a description of features.
The switching element can be controlled by up to 25 channels (1 channel represents one button on the controller).
The programming button on the element also serves as a manual output control.
Possibility to set the memory status in case of power failure.
Range up to 200m (outdoors), in case of an insufficient signal between the controller and the element, use the RFRP-20 signal repeater or elements with the RFIO2 protocol that supports this function.
Communication with bidirectional RFIO2 protocol.
The BOX version offers installation directly into the installation box, ceiling or cover of the controlled appliance.
