RFRP-20 | Signal repeater

• This signal repeater is used to extend the range between the controller and unit by up to 200 meters.
• It is designed to transmit a signal to up to 20 units.
• Indication:
  - green LED - supply voltage
  -  red LED - active status (receiving and transmitting an RF signal)
• Programming is performed by a button.
• Communication frequency with bidirectional protocol iNELS RF Control.
• Thanks to the socket design, installation is simple and straightforward
• When plugged into an existing socket, the function of the through the socket is retained.

Technical parameters

• Frequency: 866–922MHz
• Range in free space: up to 200m
• Programming: button - green LED/red LED
• Operating temperature: -20 to +55°C
• Fastening: by plugging in the socket
• Protection: IP20 Device
• Dimensions: 60 x 120 x 80mm
• Weight: 225g

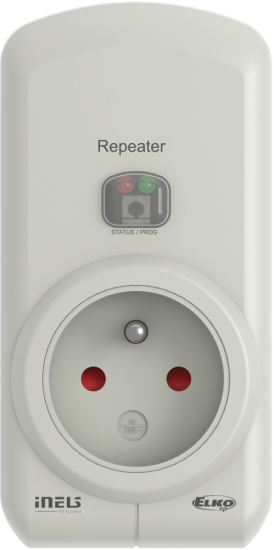

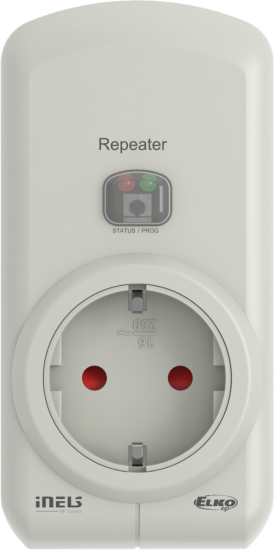

It is produced in 3 versions of sockets and plugs:

• French (CZ, SK, PL, FR)
• Schuko (HU, DE, RU, AT, RO)

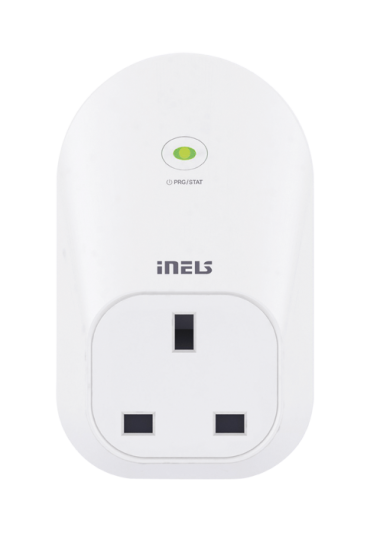

• British (GB)
