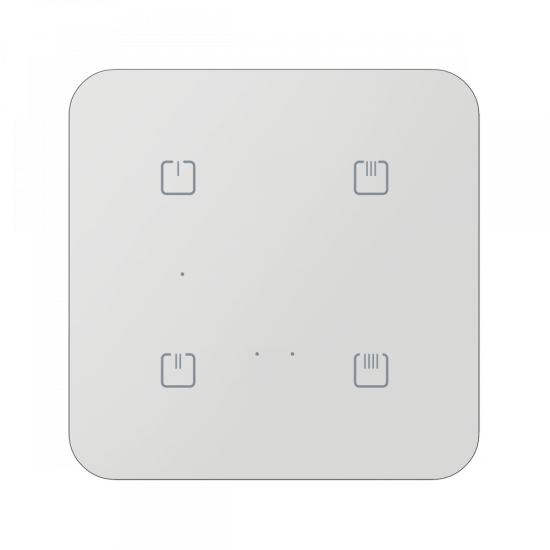

RFDW-271 - Color: White

Glass touch controller with dimmer

3D MODEL
Manufacturer: ELKO EP

Ord. code: 8895 standard
EAN: 8595188188951

Availability: In stock
Price excl. VAT £ 122,07
Your price: £ 146.49 incl. VAT
Specify product selection
Variant does not exist
pcs
Color Availability Price excl. VAT Quantity

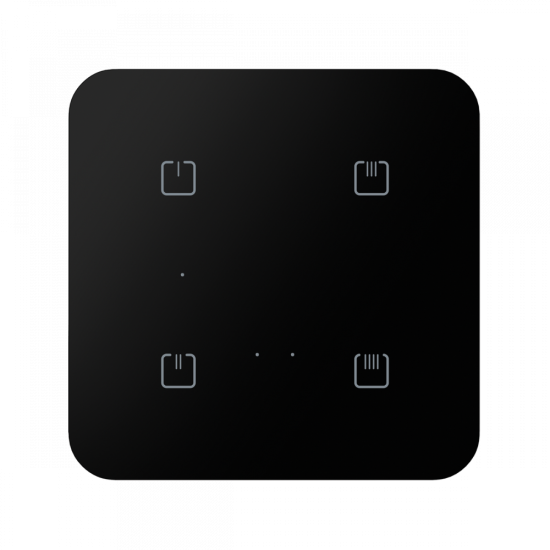

RFDW-271 - Color: White Black Not in stock £ 122.07
RFDW-271 - Color: White White In stock £ 122.07

Description

RFDW-271 | Glass touch controller with dimmer

  • The glass design controller with dimmer and touch buttons is used to control light sources:
    • R – classic lamps (resistive load)
    • L – halogen lamps with wound transformer (inductive load)
    • C – halogen lamps with electronic transformer (capacity load)
    • ESL – dimmable energy-efficient fluorescent lamps
    • LED – LED light sources (230 V) equipped with LED.
  • The touch buttons on the circuit breaker allow you to directly control the integrated dimmer as well as other components of the installation.
  • The backlight intensity (white LED) of the buttons is automatically adjusted depending on the ambient lighting.
  • They can be combined with detectors, controllers, iNELS Wireless, or system components for output control from other locations.
  • 7 light functions – smooth increase or decrease with time setting 2 s – 30 min.
  • When switched off, the set level is stored in the memory, and when switched back on, it returns to the most recently set value.
  • Thanks for setting the min. the brightness you will eliminate flashing of the LED and ESL light sources.
  • The universal dimmer may be controlled by up to 25 channels.
  • Possibility to set the memory status in case of power failure.
  • Range up to 160 m (in open space), if the signal is insufficient between the controller and unit, use the signal repeater RFRP-20N or protocol component RFIO2 that supports this feature.
  • Communication frequency with bidirectional protocol RFIO2.

 Technical parameters

  • Number of channels: 4
  • Power supply: AC 230 V
  • Design: glass round
  • Color: W - white, B - black
  • Dimensions: 94 x 94 x 41mm
  • Protocol: RFIO2
