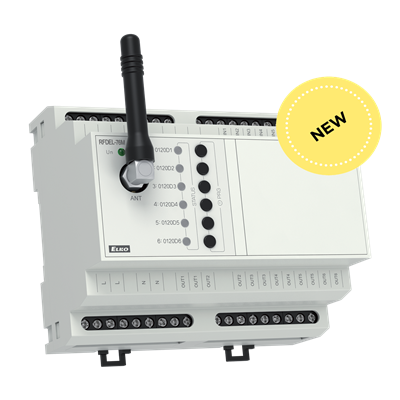

RFDEL-76M | Universal dimmer, 6-channels

• RFDEL-76M is a universal six-channel actuator, which is used to control the brightness intensity of dimmable sources R - L - C - LED - ESL.
• The maximum possible load is 150 VA for 230 V and 75 VA for 120 V for each channel.
• The individual channels of the dimmer can be connected in parallel and thus increase the maximum output load at the expense of the number of outputs.
• Each of the output channels is individually controllable and addressable.
• By setting the min. brightness eliminates fl ickering of diff erent types of light sources, setting min. brightness and type of load is done using the PROG buttons.
• Electronic overcurrent, thermal and short-circuit protection, which switches off the output.
• 6 galvanically isolated inputs for wired buttons, which can be used to control the outputs independently of the RF.
• Communication with bidirectional RFIO2 protocol. The package includes an internal AN-I antenna, in case of placement of a sheet metal distribution element, you can use an external AN-E antenna to improve the signal.

Technical parameters


• Dimmable loads: R - L - C - ESL - LED
• Output: 12x MOSFET
• Output loads: 6x 150W (230V) / 6x 75W (120V)
• Protections: overheating and overload
• Housing: 6-MODULE
• Supply voltage (frequency): 230 V (50 Hz) or AC 120 V (60 Hz)
• Dimensions: 90 x 105 x 65 mm (3.5˝ x 4.1˝ x 2.6˝)
