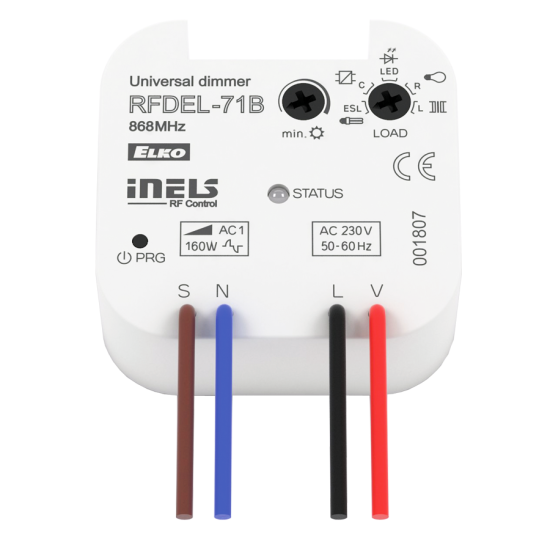

The universal built-in dimmer is used to regulate light sources:
R – classic lamps
L – halogen lamps with wound transformer
C – halogen lamps with electronic transformer
ESL – dimmable energy-efficient fluorescent lamps
LED – LED light sources (230 V).
They can be combined with detectors, controllers, iNELS RF Control, or system components.
The BOX design lets you mount it right in an installation box, a ceiling, or light cover.
6 light functions - smooth increase or decrease with time setting 2s-30 min.
When switched off, the set level is stored in the memory, and when switched back on, it returns to the most recently set value.
Thanks to setting the min. brightness by a potentiometer, you will eliminate the flashing of the LED and ESL light sources.
The universal dimmer may be controlled by up to 25 channels (1 channel represents 1 button on the controller).
Connection of the existing button on the control input „S“ enables the combination of wireless control with classic (wired) control.
The programming button on the controller is also used for manual control of the output.
Memory status can be pre-set in the event of a power failure.
For components, it is possible to set the repeater function via the RFAF / USB service device.
Range up to 160m (in open space), if the signal is insufficient between the controller and unit, use the signal repeater RFRP-20 or protocol component RFIO2 that supports this feature.
Communication frequency with bidirectional protocol iNELS RF Control2(RFIO2)
The BOX version offers installation directly into the installation box, ceiling, or luminaire cover.
Technical parameters
Supply voltage: 230V AC / 50Hz
Dimmed load: R,L,C, LED, ESL
Load capacity: 160 W *
RF command from the transmitter: 866MHz, 868MHz, 916MHz
Range in open space: up to 160m
Manual control: PROG button (ON / OFF), external button
