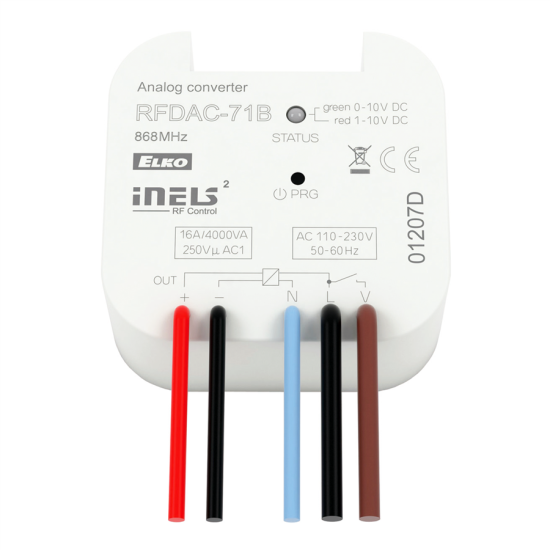

RFDAC-71B
RFDAC-71B
Analog controller 0(1)-10V - MULTI function
Description
RFDAC-71B | Analog controller
- The element with analog output 0 (1) -10V is used to control devices, luminaires, thermal actuators, and thermal heads - which are equipped with such an input
- They can be combined with detectors, controllers, or iNELS RF Control system elements.
- Potential free analog output 10mA, contact relay 16A.
- 6 light functions - smooth increase or decrease with time setting 2s-30 min.
- When switched off, the set level is stored in the memory, and when switched back on, it returns to the most recently set value.
- The analog controller may be controlled by up to 25 channels (1 channel represents 1 button on the controller).
- The programming button on the controller is also used for manual control of the output.
- The unit power supply is in the range 110-230V AC.
- Memory status can be pre-set in the event of a power failure.
- For components, it is possible to set the repeater function via the RFAF / USB service device.
- Range up to 200m (in open space), if the signal is insufficient between the controller and unit, use the signal repeater RFRP-20 or protocol component RFIO2 that supports this feature.
- Communication frequency with bidirectional protocol iNELS RF Control2
- The BOX version offers installation directly into the installation box, ceiling, or luminaire cover.
Technical parameters
- Supply voltage: 110 - 230V AC / 50 - 60Hz
- RF command from the controller: 866MHz, 868MHz, 916MHz
- Range in free space: up to 200m
- Indication: red LED/green LED
- Operating temperature: -15 to + 50°C
- Operating position: any
- Protection: IP30
- Dimensions: 49 x 49 x 21mm
- Weight: 52g
